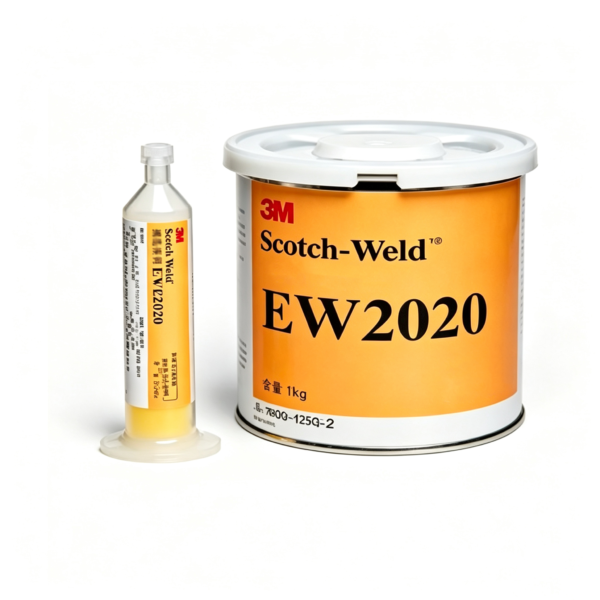

3M™ Scotch-Weld™ EW2020 One-Part Heat-Cure Epoxy Structural Adhesive for Metal and Electronic Components

3M EW2020 Structural Adhesive for High-Strength Industrial Bonding

3M EW2020 structural adhesive is a one-part, heat-curing epoxy developed for demanding assemblies that require high bond strength, environmental durability, humidity resistance, and dependable electrical performance.

Because the resin and curing components are supplied in a ready-to-use formulation, manufacturers do not need to measure or mix separate components. This helps simplify production, reduce mixing-ratio errors, and improve application consistency across different operators and manufacturing shifts.

The adhesive remains workable before heat is applied, allowing components to be positioned and fixed accurately. Curing begins when the assembled parts are exposed to the required temperature, providing greater control over the bonding and production process.

Key Benefits of 3M EW2020 Structural Adhesive

3M EW2020 structural adhesive combines structural bonding strength with excellent resistance to demanding environmental conditions.

3M describes the product as a high-humidity-resistant epoxy with excellent retention of overlap shear strength after Pressure Cooker Test exposure. This performance makes it suitable for assemblies that may experience elevated heat, moisture, or humid operating environments.

The adhesive also provides a reported dielectric strength of 2.0 kV/mm and a glass transition temperature of approximately 120°C. These characteristics are valuable in applications where both mechanical bonding and electrical insulation performance are required.

Its one-part format eliminates separate resin and hardener mixing. This can reduce preparation time, minimize wasted material, simplify operator training, and support a more repeatable production process.

3M EW2020 Structural Adhesive for Metal and Electronic Components

3M EW2020 structural adhesive is designed for high-strength bonding in industrial, electrical, and electronic assemblies.

The official 3M literature for this heat-curing epoxy range describes strong adhesion to materials such as metals, magnetic materials, and ceramics. It can therefore be considered for bonding metal housings, brackets, frames, magnetic components, electrical parts, and selected structural subassemblies.

The product may also support applications where manufacturers want to replace or supplement welding, riveting, screws, or other mechanical fastening methods.

Adhesive bonding can distribute stress across a wider joint area, reduce the need to drill holes, and create a cleaner finished appearance. However, every proposed application should be tested with the actual substrates, joint design, mechanical load, and environmental conditions.

Heat-Curing Performance of 3M EW2020 Structural Adhesive

3M EW2020 structural adhesive requires heat to develop its final strength and durability.

For the Japanese EW2020 product configuration, 3M lists recommended curing conditions of 120°C for 60 minutes or 140°C for 30 minutes. These figures are typical technical values and should not be treated as guaranteed specifications for every production condition.

Actual curing performance may be affected by oven accuracy, component size, substrate thickness, bond-line thickness, adhesive quantity, fixture design, and the time required for the complete assembly to reach the selected curing temperature.

Manufacturers should validate the curing profile using their actual components and equipment. Testing should confirm handling strength, final bond performance, dimensional stability, and production cycle time before full-scale use.

Application Guidance for 3M EW2020 Structural Adhesive

Before applying 3M EW2020 structural adhesive, all bonding surfaces should be clean, dry, and free from oil, grease, dust, oxidation, moisture, and other contaminants.

Metal surfaces may require degreasing, abrasion, chemical treatment, or another suitable preparation process. Correct surface preparation is essential for achieving dependable and repeatable adhesion.

Apply a controlled quantity of adhesive to the prepared bonding area. Assemble the components and hold them in the required position using an appropriate fixture.

Heat the complete assembly according to a validated curing schedule. After curing, allow the bonded parts to cool before applying significant mechanical stress or moving them to the next demanding production stage.

The Japanese product page also specifies refrigerated storage at 5°C or below. Storage, conditioning, handling, and safety procedures should always follow the current product label and regional 3M documentation.

Why Choose 3M EW2020 Structural Adhesive?

3M EW2020 structural adhesive provides an efficient solution for manufacturers that need durable structural bonding without the inconvenience of two-part mixing.

Its heat-triggered curing process allows accurate component positioning before cure, while its humidity resistance, dielectric performance, and approximately 120°C glass transition temperature support demanding industrial and electronic assemblies.

When combined with properly prepared substrates and a validated thermal-curing process, 3M EW2020 can help improve production consistency, reduce mixing-related errors, and create reliable bonds for metal, magnetic, electrical, and electronic components.
