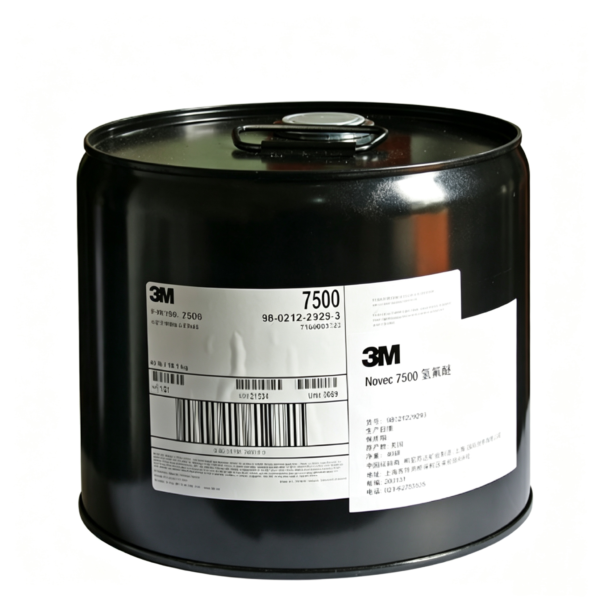

3M Novec 7500 Engineered Fluid for Dielectric Heat Transfer and Cooling

3M Novec 7500 Engineered Fluid Thermal Performance

3M developed Novec 7500 primarily as a heat-transfer fluid with many of the inertness and dielectric characteristics associated with perfluorocarbons and perfluoropolyethers. Typical physical properties at 25°C include a liquid density of approximately 1,614 kg/m³, kinematic viscosity of 0.77 cSt, surface tension of 16.2 dynes/cm, and molecular weight of 414. Its low viscosity supports circulation through compact cooling loops, while the high boiling point provides useful thermal headroom for controlled liquid-cooling systems.

The fluid has a reported dielectric strength of 35 kV across a 0.1-inch gap, volume resistivity of approximately 2.2 × 10⁸ ohm-cm, and dielectric constant of 5.8. These properties allow engineers to evaluate it for direct-contact cooling of compatible electronic components, high-voltage transformers, power electronics, and sensitive equipment. System designers must still validate electrical clearances, materials compatibility, fluid purity, flow conditions, and long-term reliability.

Semiconductor, Electronics, and Process-Cooling Applications

3M Novec 7500 Engineered Fluid has been used to cool ion implanters, dry etchers, chemical-vapor-deposition equipment, flat-panel-display manufacturing systems, semiconductor thermal-shock chambers, and electronic test equipment. It can also support single-phase or two-phase direct-contact cooling of supercomputers, sensitive electronics, power modules, and other high-heat-density assemblies when the system is specifically designed for the fluid.

Industrial and pharmaceutical applications include freeze drying, reactor cooling, and temperature control in chemical manufacturing processes. The low pour point supports low-temperature circulation, while the 128°C normal boiling point allows engineers to consider liquid and boiling heat-transfer modes. Actual cooling capacity depends on pump selection, heat-exchanger design, pressure, flow rate, geometry, and heat flux.

7 Benefits of 3M Novec 7500 Engineered Fluid

• Nonflammable performance: Does not exhibit flammability under normal operating and storage conditions.
• Dielectric properties: Supports evaluated direct-contact cooling of compatible electronic equipment.
• Broad temperature capability: Combines a -100°C pour point with a 128°C boiling point.
• Low viscosity: Promotes circulation through compact thermal-management systems.
• Thermal stability: Resists thermal breakdown and hydrolysis during intended storage and use.
• Low surface tension: Helps the fluid wet complex surfaces and narrow equipment spaces.
• Specialized process flexibility: Suitable for semiconductor, test, electronics, pharmaceutical, and chemical systems.

Materials Compatibility and System Design Guidance

Evaluate all metals, plastics, elastomers, coatings, lubricants, seals, and adhesives before system approval. 3M notes that Novec 7500 can extract plasticizers from some elastomeric materials. Low-plasticizer EPDM, EPR, and butyl compounds are identified as possible seal options, but actual compatibility must be verified through immersion, swelling, leakage, and aging tests. System cleanliness is also important because dissolved oils or contamination can alter fluid properties.

For boiling systems, heater geometry and fluid motion strongly influence available heat flux. 3M reported a critical heat flux of 18 W/cm² in a specific saturated pool-boiling test and recommended a pump-to-heater safety interlock for applications exceeding 15 W/cm². These figures are reference data only and must not be transferred directly to a production design without engineering validation.

Handling and System Qualification

Read the current safety data sheet before handling, filling, servicing, or disposing of the fluid. Use closed systems, appropriate ventilation, spill controls, compatible containers, and trained personnel. Regulatory requirements for fluorinated fluids differ by country and application, so confirm local transport, environmental, waste, and import obligations before purchase or use.

During system qualification, record the fluid temperature, flow rate, pressure, heat load, electrical conditions, seal materials, and equipment cleanliness. Evaluate evaporation losses, fluid recovery, pressure relief, leak detection, and maintenance procedures. Any replacement fluid should be assessed through controlled engineering trials rather than introduced directly into an existing system.

Official Resources and Current Availability

Review the official 3M Novec 7500 technical information for published physical properties, compatibility notes, thermal data, and system guidance. Also review the official 3M PFAS manufacturing-exit update for current corporate information.

3M completed its exit from PFAS manufacturing at the end of 2025. Because Novec 7500 is a fluorinated engineered fluid, new production has ended and commercial availability may be limited to existing inventory or transitional supply. Buyers should confirm stock, original packaging, manufacturing date, batch traceability, technical documentation, and regional regulatory status before placing an order.
