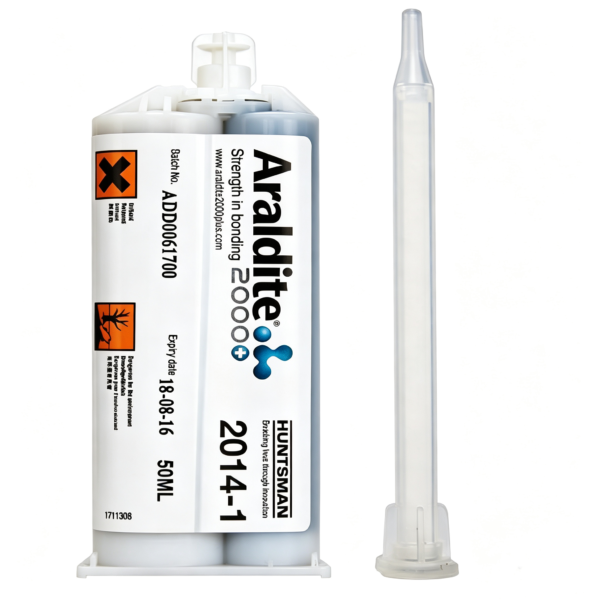

ARALDITE 2014-1 High-Temperature Two-Part Epoxy Adhesive for Metal, GRP and Electronic Component Bonding

ARALDITE 2014-1 Epoxy Adhesive is a high-strength, two-component structural bonding system developed for industrial applications exposed to elevated temperatures, moisture, chemicals, and demanding environmental conditions. This room-temperature-curing epoxy forms a durable grey bond line with excellent resistance to water and many industrial fluids. Its thixotropic, non-sagging consistency makes it suitable for metals, electronic components, glass-reinforced plastic structures, composites, and other engineering materials requiring reliable long-term adhesion.

ARALDITE 2014-1 Epoxy Adhesive for High-Performance Structural Bonding

ARALDITE 2014-1 Epoxy Adhesive combines strong mechanical performance with convenient room-temperature processing. The resin and hardener react after mixing to produce a rigid, low-shrinkage adhesive layer that distributes stress across the entire joint area. This can reduce dependence on screws, rivets, welding, and other mechanical fastening methods while supporting cleaner and more efficient product designs.

The mixed adhesive has a grey paste appearance and a typical specific gravity of approximately 1.6. Its thixotropic consistency helps prevent dripping and excessive flow during application, making it especially useful on vertical surfaces, overhead joints, irregular components, and assemblies requiring accurate adhesive placement.

With gap-filling capability of up to approximately 5 mm, the adhesive can compensate for dimensional differences and uneven mating surfaces. However, a controlled bond-line thickness should be selected according to the joint design and required performance.

Key Benefits of ARALDITE 2014-1 Epoxy Adhesive

ARALDITE 2014-1 Epoxy Adhesive offers a practical combination of high strength, chemical resistance, heat resistance, and environmental durability. It is designed for applications where ordinary general-purpose epoxy adhesives may not provide sufficient protection against aggressive service conditions.

• Two-component structural epoxy adhesive with room-temperature curing
• High-strength bonding for metals, composites, and engineering materials
• Excellent resistance to water and a wide range of chemicals
• Thixotropic, non-sagging paste for vertical and overhead application
• Gap-filling capability of up to approximately 5 mm
• Low curing shrinkage for stable and accurately aligned assemblies
• Low-outgassing performance for specialist electronic applications

The product has a typical pot life of approximately 60 minutes for a 100g mixed quantity at 25°C. This extended processing period gives operators sufficient time to dispense, position, align, and fixture larger or more complex components before curing progresses.

Applications of ARALDITE 2014-1 Epoxy Adhesive

ARALDITE 2014-1 Epoxy Adhesive is suitable for bonding aluminum, steel, stainless steel, galvanized steel, copper, brass, GRP, CFRP, SMC, ABS, PVC, polycarbonate, polyamide, and other compatible substrates. Material compatibility and final performance should always be confirmed using actual production components.

Typical applications include industrial machinery, electronic and telecommunications equipment, aerospace assemblies, automotive components, metal housings, composite panels, motors, structural brackets, pipes, filters, equipment frames, and glass-reinforced plastic structures.

Its low-outgassing characteristics make it particularly useful for selected electronic, telecommunications, and aerospace applications where contamination from volatile materials must be minimized. The adhesive may also be used for assemblies exposed to fuel, lubricating oil, water, solvents, elevated temperatures, or tropical humidity, subject to application-specific testing.

How to Apply ARALDITE 2014-1 Epoxy Adhesive

Before application, remove oil, grease, dust, moisture, oxidation, and loose contamination from both bonding surfaces. For stronger and more durable joints, metal surfaces may be mechanically abraded or chemically treated before receiving a final degreasing process.

Mix the resin and hardener at a ratio of 100:50 by weight or 100:50 by volume. Dual cartridges with compatible static mixers can help maintain the correct ratio and provide uniform mixing. Apply the mixed adhesive to the prepared surfaces, assemble the components promptly, and hold them securely in position while curing develops.

A bond-line thickness of approximately 0.05–0.10 mm normally provides strong lap-shear performance on closely fitted joints. Larger gaps may be filled when required, but the optimum thickness should be established through production testing.

Storage of ARALDITE 2014-1 Epoxy Adhesive

Store both components in their original sealed containers in a dry location within the manufacturer’s recommended temperature range. Under specified storage conditions, the resin and hardener have a stated shelf life of up to three years. Always check the expiration date and review the latest safety documentation before use.

ARALDITE 2014-1 Epoxy Adhesive is a dependable solution for manufacturers seeking strong structural bonding, controlled non-sag application, chemical resistance, water resistance, and reliable performance in aggressive industrial environments.
