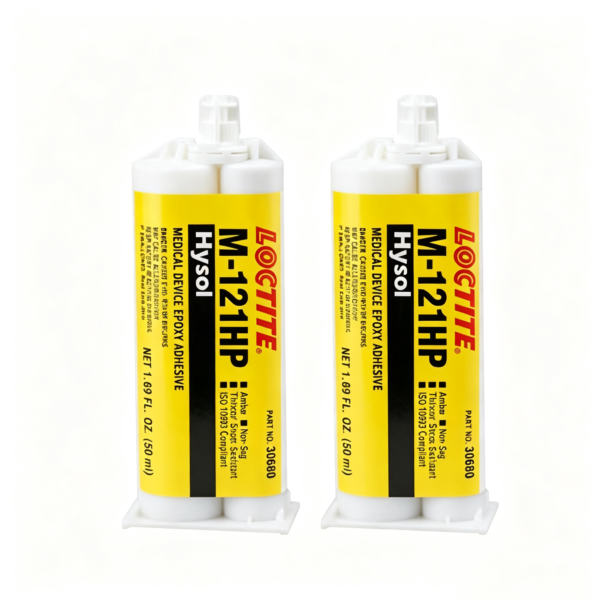

LOCTITE EA M-121HP Two-Part Epoxy Adhesive for Disposable Medical Device Assembly
LOCTITE EA M-121HP Two-Part Epoxy Adhesive for Disposable Medical Device Assembly
LOCTITE EA M-121HP Two-Part Epoxy Adhesive is a medium-viscosity, non-sagging structural epoxy developed for reliable bonding in disposable medical device assembly and other precision applications. The resin is off-white to beige, the hardener is amber, and the mixed material forms an amber-beige bond line. Its two-component formulation cures at room temperature after mixing, creating a tough joint with strong resistance to peel and impact forces.
Designed for professional manufacturing environments, LOCTITE EA M-121HP Two-Part Epoxy Adhesive supports the joining of dissimilar materials, including aluminum, steel, other metals, selected plastics, ceramics, glass, and engineered substrates. Its non-sagging consistency helps the adhesive remain in place on vertical surfaces and controlled bond areas, while the approximately 120-minute working life gives operators time for dispensing, positioning, fixture adjustment, and assembly of detailed components.
Key Benefits of LOCTITE EA M-121HP Two-Part Epoxy Adhesive
LOCTITE EA M-121HP Two-Part Epoxy Adhesive combines impact resistance, high peel strength, thermal-shock resistance, and dependable mechanical performance in one room-temperature-curing system. Once fully cured, it also provides useful electrical properties and resistance to a wide variety of chemicals and solvents. These characteristics make it well suited to low-stress assemblies that must tolerate handling, transportation, vibration, temperature changes, and everyday service conditions.
The recommended resin-to-hardener mixing ratio is 2:1 by volume or 100:46 by weight. When dispensed from a compatible dual cartridge with a static mixing nozzle, the two components can be delivered in the correct proportion for cleaner, more repeatable processing. The medium-viscosity formula also supports controlled bead placement without the excessive flow associated with low-viscosity epoxies.
Applications for LOCTITE EA M-121HP Two-Part Epoxy Adhesive
LOCTITE EA M-121HP Two-Part Epoxy Adhesive is suitable for assembling disposable medical devices and precision components where reliable bonding of dissimilar materials is required. Potential applications include medical housings, diagnostic components, filters, connectors, small equipment parts, plastic-to-metal joints, ceramic components, and other low-stress structures requiring high impact and peel resistance.
Henkel states that the product has been tested according to company protocols based on ISO 10993 biocompatibility standards to assist product selection for medical device applications. This testing does not replace validation of the final assembled device. Manufacturers should evaluate the adhesive with the actual substrates, production process, cleaning method, sterilization method, intended exposure, and regulatory requirements before commercial use.
How to Apply LOCTITE EA M-121HP Two-Part Epoxy Adhesive
For high-strength bonding, remove paint, oxide films, oil, dust, mold-release agents, moisture, and other contamination from both surfaces. When using a dual cartridge, verify that resin and hardener flow evenly before attaching the mixing nozzle. For manual mixing, combine the components thoroughly and continue mixing briefly after a uniform color is achieved.
Apply the mixed adhesive evenly to the bonding surfaces and complete assembly within the available working time. Hold the parts securely during curing and maintain contact pressure without allowing movement. A bond-line thickness of approximately 0.1 to 0.2 mm is recommended for maximum shear strength. Room-temperature curing can produce high strength after approximately 24 hours, while controlled heat can accelerate the process when compatible with the components.
Storage and Safety of LOCTITE EA M-121HP Two-Part Epoxy Adhesive
Store LOCTITE EA M-121HP Two-Part Epoxy Adhesive in the unopened original container in a dry location and follow the storage conditions printed on the package. Use suitable gloves, avoid direct skin and eye contact, and consult the current safety data sheet before handling. Do not use the product in pure oxygen, oxygen-rich systems, or as a sealant for chlorine and other strong oxidizing materials.
For manufacturers seeking a tough, process-friendly epoxy for disposable medical devices and multi-material assembly, LOCTITE EA M-121HP Two-Part Epoxy Adhesive offers controlled dispensing, long working time, room-temperature curing, and durable bond performance. Explore our medical device structural adhesives for additional solutions designed for precision manufacturing and specialized industrial assembly.
