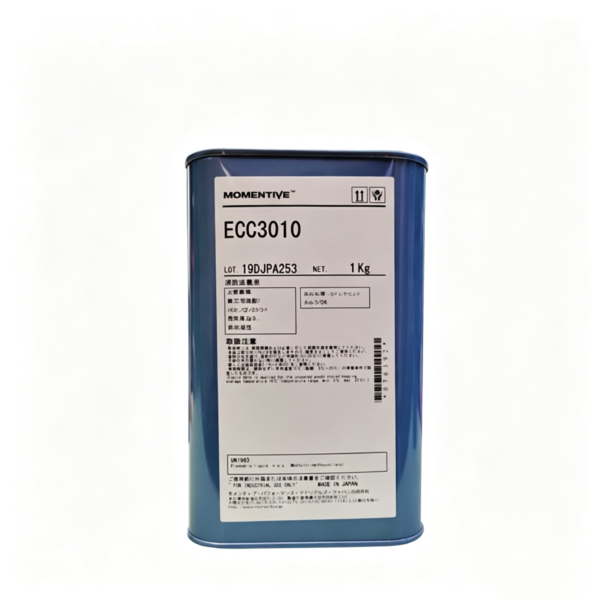

Momentive SILTRUST ECC3010 Conformal Coating is a one-component, low-viscosity silicone coating developed to protect printed circuit boards, electrical assemblies, and sensitive electronic components. It cures through exposure to atmospheric moisture and forms a flexible elastomeric protective film. Its solventless formulation, rapid curing performance, electrical insulation properties, and convenient application make it suitable for modern electronics manufacturing and precision industrial assembly.

Table of Contents

Momentive SILTRUST ECC3010 Conformal Coating for Electronic Protection

Momentive SILTRUST ECC3010 Conformal Coating creates a thin protective layer over electronic circuits and components. The cured silicone elastomer helps protect assemblies against moisture, environmental contamination, and conditions that may reduce electrical reliability.

The coating has a translucent and flowable appearance before curing. Its typical viscosity is approximately 110 mPa·s at 23°C, allowing it to spread efficiently across circuit boards, component leads, solder joints, and complex electronic surfaces. This low viscosity supports uniform coating thickness and controlled coverage without requiring a solvent-based dilution system.

Because the product is supplied as a ready-to-use, one-component material, operators do not need to measure or mix separate resin and hardener components. This simplifies production, reduces mixing errors, and makes the coating suitable for manual application as well as automated dispensing processes.

Key Benefits of Momentive SILTRUST ECC3010 Conformal Coating

Momentive SILTRUST ECC3010 Conformal Coating offers fast processing and dependable protection for electrical and electronic assemblies. At approximately 23°C and 50% relative humidity, a 100-micron coating can typically become tack-free in about three minutes and cure in approximately ten minutes.

One-component moisture-curing silicone system
Low-viscosity and solventless formulation
Fast tack-free and curing performance
Non-corrosive to metal components
Low-odor cure that releases alcohol vapor
Built-in UV indicator for black-light inspection
UL 94 V-0 recognized flame-retardant performance

The UV indicator helps quality-control personnel inspect coating coverage under black light. This feature makes it easier to identify missed areas, uneven application, or insufficient coverage during manufacturing inspection.

After curing, the coating forms a translucent elastomer with a typical density of 0.99 g/cm³ and Type A hardness of approximately 35. The flexible cured layer can accommodate movement, vibration, and thermal expansion more effectively than a rigid protective coating.

Electrical Properties of Momentive SILTRUST ECC3010 Conformal Coating

Momentive SILTRUST ECC3010 Conformal Coating provides strong electrical insulation characteristics for sensitive assemblies. Typical cured properties include a volume resistivity of 1 × 10¹⁵ ohm-centimeters and a dielectric strength of approximately 20 kV/mm.

The product also provides a typical dielectric constant of 2.78 and dielectric loss of 0.001 at 60 Hz. These properties make it suitable for circuit boards and electronic components where electrical insulation and dependable dielectric performance are important.

Applications for Momentive SILTRUST ECC3010 Conformal Coating

Momentive SILTRUST ECC3010 Conformal Coating is recommended for conformal coating of electrical and electronic components, moisture-resistant protection of printed circuit boards, and thin-section potting of electronic assemblies.

Typical applications include automotive electronics, industrial control boards, communication equipment, LED modules, power supplies, household appliances, sensors, control units, consumer electronics, and precision electronic devices.

The coating may be applied by dispensing, brushing, spraying, dipping, or other suitable coating processes. Application equipment and coating parameters should be selected according to the circuit design, required film thickness, production volume, and environmental conditions.

How to Apply Momentive SILTRUST ECC3010 Conformal Coating

Before coating, ensure that the circuit board is clean, dry, and free from dust, oil, flux residue, moisture, and other contaminants. Apply a thin and uniform layer across the required surfaces while masking connectors, switches, test points, and components that must remain uncoated.

Allow the coating to cure in an environment with sufficient atmospheric moisture. Curing speed depends on temperature, relative humidity, coating thickness, and airflow. Users should complete production testing to confirm coating compatibility, curing conditions, inspection procedures, and long-term performance.

Momentive SILTRUST ECC3010 Conformal Coating is an efficient solution for manufacturers seeking fast curing, easy inspection, electrical insulation, moisture protection, and reliable silicone performance for sensitive electronic assemblies.
