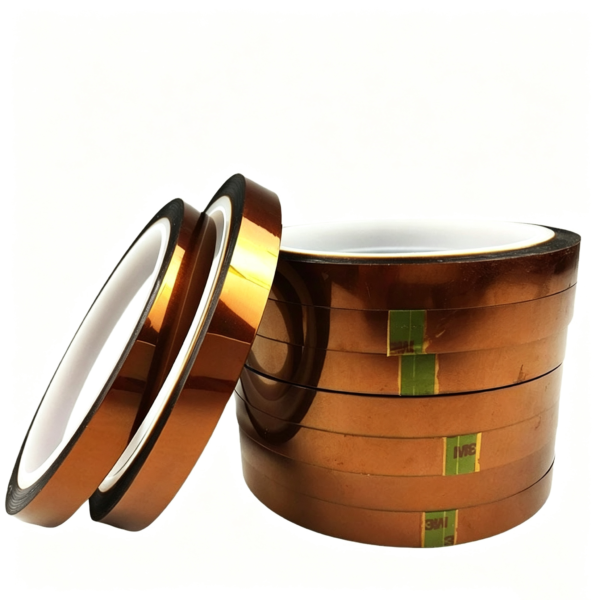

3M 7413D High Temperature Polyimide Tape for PCB Solder Masking

3M 7413D High Temperature Polyimide Tape for PCB Processing

During soldering and thermal processing, exposed gold fingers, contacts, pads, and sensitive component areas must remain protected from solder, flux, and unwanted surface contamination. 3M 7413D High Temperature Polyimide Tape provides a thin protective barrier that remains dimensionally stable when exposed to heat. Its amber backing makes the applied area easy to identify, while the silicone adhesive supports secure contact during processing and reduces the risk of adhesive transfer when the tape is removed under validated conditions.

The tape can also serve as a release surface during the fabrication of parts cured at elevated temperatures. It is available in standard and custom widths, allowing production teams to select full-width rolls, narrow slit rolls, or precision die-cut shapes. The standard roll length is 33 meters, supporting both manual masking and repetitive production applications.

Technical Construction and Electrical Performance

The tape uses a 25-micron polyimide film backing combined with approximately 45 microns of silicone adhesive, producing a total nominal thickness of 70 microns. Typical adhesion to steel is 28 N per 100 mm, while tensile strength at break is approximately 450 N per 100 mm. The backing provides around 40% elongation at break, helping the tape conform to selected profiles without excessive stretching during normal application.

Its typical dielectric strength is 6.0 kV, making the product useful where temporary electrical insulation is required during electronic processing. 3M also identifies the tape for very high-temperature applications, with published product-selection literature listing a working range up to 260°C for suitable process conditions. Actual performance depends on exposure time, substrate type, surface condition, pressure, and the complete manufacturing process.

7 Benefits of 3M 7413D High Temperature Polyimide Tape

• High-temperature masking: Supports PCB soldering and thermal manufacturing processes.
• Dimensional stability: Polyimide backing maintains its shape during elevated-temperature exposure.
• Silicone adhesive: Delivers dependable contact and controlled removal.
• Thin construction: The 0.070 mm profile protects surfaces with minimal added thickness.
• Electrical insulation: Provides typical dielectric strength of approximately 6.0 kV.
• Flexible converting: Available in custom widths and die-cut formats for precision production.
• Visible masking: Amber color allows fast confirmation of protected areas.

Application and Storage Guidance

Ensure the target surface is clean, dry, and free from oil, dust, moisture, flux residue, and release agents. Apply the tape using firm, even pressure and avoid wrinkles, trapped air, or loose edges. Mask all required areas before soldering or thermal processing, then remove the tape according to the validated production procedure. Users should test actual substrates, temperatures, dwell times, and removal conditions before high-volume use.

Store the product in its original packaging at approximately 21°C and 50% relative humidity. Under these recommended conditions, the stated shelf life is 18 months from the manufacturing date. Protect unused rolls from dust, excessive heat, direct sunlight, and physical damage.

Official Resources and Related High-Temperature Tapes

Review the official 3M 7413D technical data sheet for construction, performance, storage, and application information. The official 3M high-temperature tape selection guide can also help manufacturers compare polyimide and process-tape options.

Explore our high-temperature polyimide tapes for additional PCB masking and electrical insulation products. You can also browse our PCB solder masking tapes for wave soldering, reflow, solder dipping, plating, and electronics assembly. Contact our sales team for quotations, custom widths, die-cut parts, roll quantities, technical documentation, and export support.
