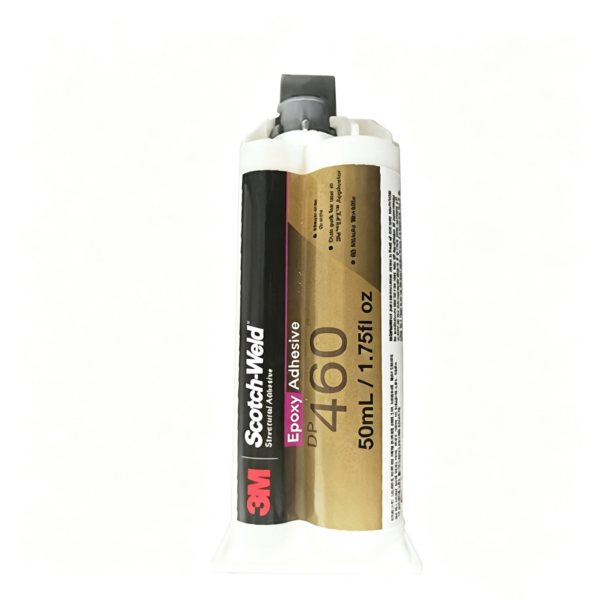

3M DP-460EG Epoxy Adhesive for Durable Electronics Bonding

3M DP-460EG Epoxy Adhesive is a toughened, two-component structural adhesive developed for demanding electronics bonding, potting, rigidizing, and precision component assembly. It combines high peel and shear strength with controlled flow and lower ionic and outgassing impurities than conventional industrial epoxies. The room-temperature-curing formulation creates strong, durable bonds on many compatible surfaces while helping manufacturers control contamination in sensitive electronic and electromechanical applications.

The adhesive uses a 2:1 base-to-accelerator mixing ratio by volume and provides a working life of approximately 110 minutes at 23°C. This extended open time supports accurate dispensing, component alignment, fixture adjustment, and assembly of larger or more complex parts. Handling strength develops in approximately four hours, while a full room-temperature cure is typically achieved after 24 hours.

Key Benefits of 3M DP-460EG Epoxy Adhesive

3M DP-460EG Epoxy Adhesive is formulated for applications where mechanical durability and material cleanliness are equally important. Official 3M data identifies total outgassing below 1,000 μg/g and siloxane outgassing at or below 5 μg/g when tested by GC/MS at 85°C for three hours. The product also has lower chloride-ion content than standard epoxies, helping support sensitive electronic assemblies where ionic contamination may be a concern.

Typical mixed viscosity is approximately 15,000 to 25,000 cP at 23°C, giving the adhesive controlled flow without the extremely low viscosity of an unfilled liquid resin. The base is white, and the accelerator is amber. The mixed system offers high shear and peel performance, with official 3M product information listing approximately 4,500 psi overlap shear strength and 50 pounds per inch peel performance on aluminum under specified test conditions.

The technical data sheet reports overlap shear values above 35.5 MPa after a 24-hour room-temperature cure on etched aluminum. It also lists a dielectric constant of approximately 4.6 at 1 kHz and 23°C and thermal conductivity of about 0.263 W/m·K at 45°C. These properties make the adhesive useful where structural retention, electrical insulation, and controlled thermal performance are required.

Applications for 3M DP-460EG Epoxy Adhesive

3M DP-460EG Epoxy Adhesive is designed primarily for electronics and precision electromechanical manufacturing. Official application examples include hard-disk-drive assembly, spindle-motor assembly, bearing-cartridge assembly, magnet bonding, E-block assembly, potting, and rigidizing. It may also be evaluated for sensors, electronic modules, metal housings, ceramic components, motor parts, and other assemblies requiring durable bonding with reduced outgassing.

Actual bond performance depends on the substrate, surface finish, joint design, bond-line thickness, curing conditions, and service environment. Production users should test the adhesive on representative components, particularly when bonding coated metals, plastics, sensitive electronics, or parts exposed to vibration, thermal cycling, chemicals, or long-term mechanical loading.

How to Apply 3M DP-460EG Epoxy Adhesive

Before applying 3M DP-460EG Epoxy Adhesive, remove oil, grease, dust, moisture, oxide, release agents, and other contamination from both surfaces. Dispense the two components at the specified 2:1 ratio and mix thoroughly until the material is uniform. A compatible 3M Duo-Pak applicator and static mixing nozzle can simplify accurate metering, mixing, and controlled dispensing.

Apply the adhesive within its 110-minute working life, assemble the components, and secure them in the correct position until adequate handling strength develops. Room-temperature curing requires approximately 24 hours. Heat can accelerate curing, with representative schedules including 90 minutes at 71°C, 30 minutes at 93°C, or 10 minutes at 121°C. The selected heat cycle must remain compatible with the bonded components.

Storage and Safety of 3M DP-460EG Epoxy Adhesive

Store 3M DP-460EG Epoxy Adhesive in its original container at approximately 15°C to 27°C, or refrigerate it to help maximize storage life. The technical data sheet lists a shelf life of 15 months when the product is stored correctly in its original packaging. Use suitable ventilation and personal protective equipment, and review the current safety data sheets for both components before industrial use.

For manufacturers requiring a durable structural epoxy for sensitive electronics, 3M DP-460EG Epoxy Adhesive provides long working time, strong peel and shear performance, controlled flow, low siloxane outgassing, and reduced ionic contamination. Explore our electronic epoxy adhesives for hard-disk drives, motors, magnets, sensors, potting, rigidizing, and precision component assembly.
