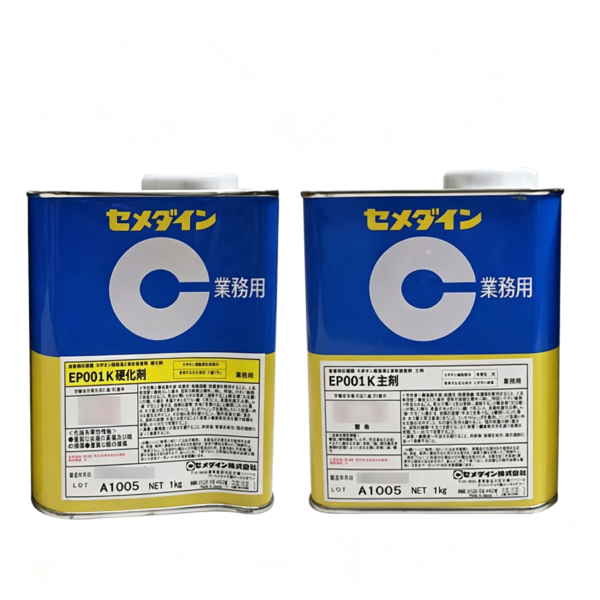

CEMEDINE EP001K Elastic Epoxy Adhesive for Engineering Plastics and Metal Bonding
CEMEDINE EP001K Elastic Epoxy Adhesive for Flexible Multi-Material Bonding
CEMEDINE EP001K Elastic Epoxy Adhesive is a two-component, room-temperature-curing adhesive developed for durable bonding of engineering plastics, metals, glass, ceramics, and other compatible materials. Its hybrid epoxy and modified-silicone chemistry creates a cured layer that is flexible yet strong, helping the joint absorb vibration, impact, thermal expansion, contraction, and repeated temperature changes. This combination makes it especially useful for dissimilar-material assemblies where a conventional rigid epoxy may crack, peel, or transfer excessive stress into delicate parts.
Designed for electronics, automotive components, precision equipment, optical devices, batteries, and industrial manufacturing, CEMEDINE EP001K Elastic Epoxy Adhesive uses a simple 1:1 mixing ratio. At 23°C, the product provides an approximate usable time of 10 minutes, a set time of about 40 minutes, and practical strength after around 24 hours. These processing characteristics support controlled mixing, accurate positioning, and efficient production planning for manual or automated two-part dispensing systems.
Key Benefits of CEMEDINE EP001K Elastic Epoxy Adhesive
CEMEDINE EP001K Elastic Epoxy Adhesive combines high peel resistance, useful shear strength, and long-term elasticity. The base resin is milky white, while the hardener is light yellow. Typical viscosity values are approximately 14 Pa·s for the resin and 18 Pa·s for the hardener at 23°C, supporting smooth mixing and controlled application. After cure, the material has a typical Shore A hardness of 72, elongation at break of about 200%, and an elastic modulus of approximately 3.2 MPa.
The flexible cured film follows movement between bonded materials instead of becoming excessively brittle. It is well suited to joints exposed to vibration, impact, thermal cycling, or changing mechanical stress. The product also offers good adhesion to general-purpose plastics and engineering plastics, including PBT and PPS, as well as non-ferrous metals and mixed plastic-to-metal structures. Its formulation does not contain low-molecular-weight siloxane compounds that may contribute to electrical contact problems, making it valuable for sensitive electronic assemblies.
Applications for CEMEDINE EP001K Elastic Epoxy Adhesive
CEMEDINE EP001K Elastic Epoxy Adhesive can be used for bonding and sealing electrical and electronic components, battery cells and housings, converter enclosures, sensors, camera modules, precision instruments, optical equipment, glass parts, construction components, and craft products. It is particularly useful where materials have different coefficients of thermal expansion or where the finished assembly must tolerate repeated heating and cooling.
The adhesive may also support potting, localized sealing, housing assembly, and structural bonding where both high peel strength and flexibility are required. Actual performance depends on the substrate grade, coating, surface condition, joint design, adhesive thickness, curing temperature, and service environment. Representative testing should therefore be completed before mass production, especially for safety-critical, high-temperature, or chemically exposed applications.
How to Apply CEMEDINE EP001K Elastic Epoxy Adhesive
Before applying CEMEDINE EP001K Elastic Epoxy Adhesive, remove oil, grease, dust, moisture, rust, oxide, mold-release agents, and other contamination from both surfaces. Dispense equal quantities of the base resin and hardener onto a clean mixing surface or through suitable two-component equipment. Mix thoroughly until the color and consistency are uniform, then apply the adhesive within the available working time.
Join the components, confirm alignment, and hold them securely with clamps, tape, or a suitable fixture. Maintain stable contact while the adhesive sets and avoid operational loading before adequate cure has developed. For repeatable manufacturing, standardize the mixing ratio, bead size, bond-line thickness, assembly time, fixture pressure, temperature, humidity, and curing duration.
Storage and Safety of CEMEDINE EP001K Elastic Epoxy Adhesive
Store CEMEDINE EP001K Elastic Epoxy Adhesive in its original sealed packaging according to the current product label and safety documentation. Keep resin and hardener tools separate to prevent contamination. Use the product in a ventilated workplace, wear suitable protective equipment, and avoid direct skin and eye contact. Current technical and safety documents should be reviewed before production use.
For buyers seeking a flexible two-part adhesive for demanding multi-material assembly, CEMEDINE EP001K Elastic Epoxy Adhesive offers simple 1:1 mixing, strong adhesion, high peel resistance, siloxane-controlled performance, and durable flexibility. It is a practical choice for engineering plastics, metals, electronics, batteries, optical equipment, automotive components, and precision industrial manufacturing. Explore our industrial elastic epoxy adhesives for additional multi-material bonding solutions.
