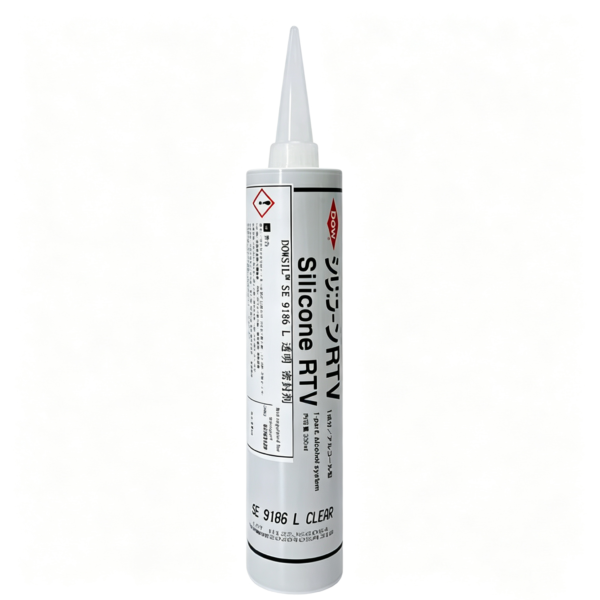

DOWSIL SE 9186 L Sealant for Electronic Component Protection

DOWSIL SE 9186 L Sealant is a one-part, flowable RTV silicone developed for bonding, fixing, coating, and sealing electronic components. The alkoxy-cure material reacts with atmospheric moisture at room temperature and forms a soft elastomer without mixing or an oven. Its translucent appearance and controlled flow make it practical for circuit boards, LCD modules, connectors, housings, battery packs, and compact assemblies where the material must spread into narrow areas while maintaining a neat finish.

Designed for electronics manufacturing, DOWSIL SE 9186 L Sealant offers fast surface cure, controlled silicone volatility, and low-stress protection. The uncured product can flow, fill, or self-level after dispensing. After curing, the soft silicone layer can absorb vibration and movement caused by temperature changes. This stress-relieving behavior can improve reliability when delicate components, solder joints, displays, or mixed-material interfaces experience thermal cycling.

Key Benefits of DOWSIL SE 9186 L Sealant

DOWSIL SE 9186 L Sealant combines simple one-part processing with useful flexibility. Dow lists a typical Shore A hardness of 25, elongation of approximately 340%, and tensile strength of about 232 psi. These properties create a relatively soft cured material that can protect electronic parts without forming an excessively rigid stress point. The formula contains no added solvents, eliminating a separate evaporation stage and supporting cleaner room-temperature processing.

The product has a typical viscosity of approximately 27,000 mPa·s, providing useful flow while remaining controllable during dispensing. Dow identifies a fast tack-free time and a representative cure condition of approximately 24 hours at 25°C and 50% relative humidity for a 3 mm section. Actual cure speed depends on humidity, temperature, bead dimensions, airflow, and joint depth. Mild heat may accelerate processing when the substrates allow it.

Applications for DOWSIL SE 9186 L Sealant

DOWSIL SE 9186 L Sealant is intended for rigid and flexible circuit boards, spot protection of components, LCD modules, battery packs, electronic housings, connectors, and board assemblies. It can be used for component fixing, localized coating, gap filling, and protective sealing where moisture, contamination, vibration, or mechanical stress could reduce reliability. Its controlled volatility also supports applications requiring careful management of silicone-related contamination.

Final adhesion and protection depend on the substrate, surface finish, contamination, geometry, and service environment. Manufacturers should test representative components before production, especially when bonding plastics, coated metals, or parts exposed to humidity, temperature cycling, or electrical stress. Qualification should include adhesion, cure depth, rework requirements, environmental resistance, and compatibility with nearby materials.

How to Apply DOWSIL SE 9186 L Sealant

Before applying DOWSIL SE 9186 L Sealant, clean the surfaces and remove oil, dust, moisture, flux residue, release agents, and other contamination. Dispense a controlled bead, dot, or coating onto the required area. Allow the material to flow into the joint or around the component, then keep the assembly undisturbed while the silicone develops handling strength. Automated dispensing should be validated for bead size, flow rate, placement accuracy, and repeatability.

Because moisture is required for curing, thick or enclosed sections cure more slowly than exposed thin layers. Allow adequate time before electrical testing, thermal cycling, vibration testing, packaging, or shipment. Where heat acceleration is considered, confirm that the selected temperature will not damage the components or surrounding materials.

Storage and Safety of DOWSIL SE 9186 L Sealant

Store DOWSIL SE 9186 L Sealant in its original sealed package under the conditions shown on the current label and technical data sheet. Keep the dispensing outlet clean and close the package promptly after use. Operators should use suitable ventilation and protective equipment and review the latest safety data sheet before handling.

For manufacturers seeking a flowable, low-stress silicone for electronic protection, DOWSIL SE 9186 L Sealant provides one-part processing, fast surface cure, controlled volatility, and flexible protection for circuit boards, displays, battery packs, connectors, and precision electronic assemblies.
