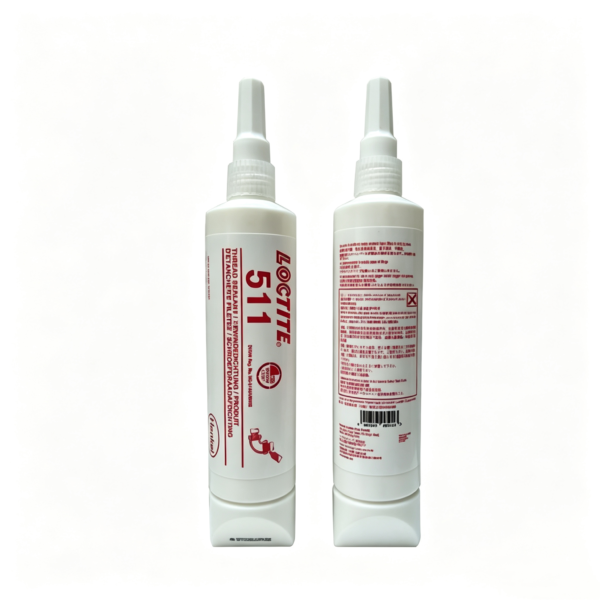

LOCTITE 511 Low Strength Thread Sealant for Reliable Metal Pipe Sealing

LOCTITE 511 Low Strength Thread Sealant is a professional one-component anaerobic sealant developed for close-fitting metal threaded pipes, fittings, plugs, adapters, valves, and couplings. Its smooth paste consistency supports controlled application and helps the material remain on the thread during assembly. Once confined between mating metal surfaces and isolated from air, the sealant cures to form a durable barrier that helps prevent leakage and unwanted movement.

Designed for industrial maintenance, equipment manufacturing, and general mechanical assembly, LOCTITE 511 Low Strength Thread Sealant offers a practical alternative to traditional thread tape and sealing fibers. The ready-to-use formula eliminates mixing, simplifies preparation, and supports repeatable application in workshops, repair facilities, and production lines. Its low locking strength also allows many assembled parts to be removed later with standard hand tools, making it suitable for systems that may require inspection, adjustment, or routine servicing.

Key Benefits of LOCTITE 511 Low Strength Thread Sealant

LOCTITE 511 Low Strength Thread Sealant fills microscopic gaps between metal threads and creates continuous sealing coverage around the joint. Because the paste follows the thread profile, it can reduce the risk of loose sealing fragments entering the system. Its thixotropic behavior helps minimize dripping and migration, which is especially useful when working on vertical, horizontal, or difficult-to-access connections.

The anaerobic curing mechanism provides operators with useful working time before final tightening. Material exposed to air remains relatively stable, while the portion enclosed between close-fitting metal surfaces begins to cure. This curing behavior supports clean assembly and helps reduce premature hardening at the dispensing point. The combination of reliable sealing, controlled application, and serviceable disassembly makes the product suitable for both original equipment manufacturing and maintenance work.

Applications for LOCTITE 511 Low Strength Thread Sealant

LOCTITE 511 Low Strength Thread Sealant can be used on metal pipe fittings, threaded adapters, couplings, plugs, valves, pumps, hydraulic components, pneumatic equipment, gearboxes, and other industrial machinery. It is particularly useful where leakage prevention is required but the connection may need to be dismantled in the future.

Before production use, the actual substrate, operating fluid, pressure, temperature, thread type, and joint clearance should be evaluated. Cure speed and final performance can vary depending on metal activity, surface condition, ambient temperature, and assembly gap. Plated or inactive metals may require additional testing or the use of a manufacturer-recommended activator. Representative trials under real operating conditions are strongly recommended before approving the product for high-volume or safety-critical applications.

How to Apply LOCTITE 511 Low Strength Thread Sealant

Clean and dry the male and female threads before application. Remove oil, dust, moisture, old sealing material, and other contamination that could interfere with adhesion. Apply a continuous bead around the male thread while leaving the first thread free to reduce the chance of excess material entering the system. Work the sealant into the thread profile and apply additional material to the female thread when the fitting is large or the clearance is wider.

Assemble the parts promptly, align them correctly, and tighten the connection using the specified tool and installation torque. Wipe away excess uncured material from the outside of the joint. Allow sufficient curing time before exposing the assembly to operating pressure, chemicals, vibration, or elevated temperature.

Storage and Safety of LOCTITE 511 Low Strength Thread Sealant

Use LOCTITE 511 Low Strength Thread Sealant in a well-ventilated area and follow the latest safety data sheet. Avoid use in oxygen-rich systems, strong oxidizing environments, or unapproved plastic-thread applications. Store the closed container in a cool, dry location, keep the dispensing tip clean, and do not return removed material to the original package.

For related solutions, explore our industrial thread sealants for metal pipe and machinery applications. Always review the latest manufacturer technical documentation before product selection, process approval, or mass production.
