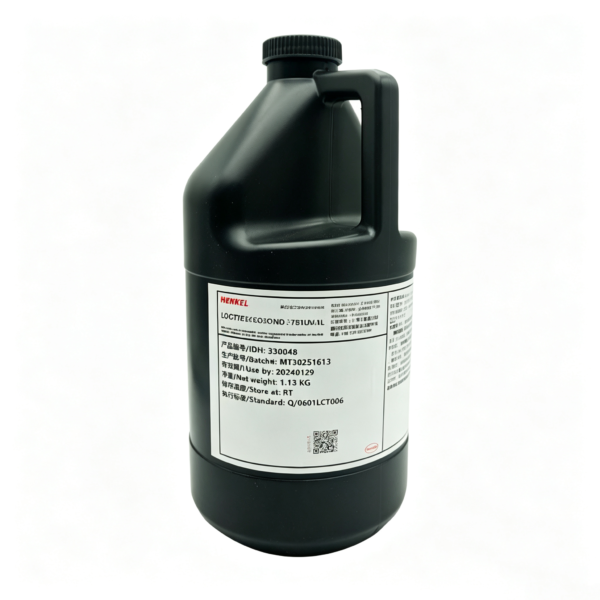

Henkel LOCTITE ECCOBOND 3781UV LCD End Sealant for Display Assembly

LOCTITE ECCOBOND 3781UV LCD End Sealant Performance

The material has a typical Brookfield viscosity of approximately 12,000 mPa·s at 25°C. This consistency supports controlled needle dispensing while helping the liquid remain within narrow display edges and designated seal areas. Because curing begins only after light exposure, operators can dispense, align, and inspect components before initiating the cure. This on-demand process can reduce fixture time and improve repeatability in automated or semi-automated display production.

Under Henkel’s reference conditions using a high-pressure mercury lamp at 100 mW/cm², the product reaches a tack-free surface in approximately two seconds. A 20-second exposure at the same intensity provides a reported cure depth of about 3.7 mm. Actual results depend on UV intensity, spectral output, exposure time, substrate transmission, adhesive thickness, and lamp distance. Each production process should be qualified using the actual glass, dispensing equipment, and curing system.

LCD End Sealing and Precision Device Assembly

LOCTITE ECCOBOND 3781UV LCD End Sealant is designed primarily for sealing LCD structures and can also support selected device assembly and structural bonding tasks. Its translucent amber appearance permits visual process control, while the cured material creates a hard protective barrier around prepared joints. Typical uses include liquid crystal displays, display modules, glass-to-metal joints, optical assemblies, and electronic devices requiring a fast-cured seal around a narrow opening or edge.

Typical cured properties include Shore D hardness of 82, glass-transition temperature of 68°C, and 24-hour water absorption of approximately 1.7%. Published electrical values include dielectric strength of 27 kV/mm, volume resistivity of 1.3 × 10¹⁶ ohm-cm, and surface resistivity of 4.0 × 10¹⁵ ohms. Henkel also reports tensile shear strength of approximately 11 N/mm² for a grit-blasted mild-steel pin bonded to glass under specified test conditions.

7 Commercial Benefits for Display Manufacturing

• One-component formula eliminates resin and hardener mixing.
• Two-second reference tack-free cure supports rapid processing.
• Controlled viscosity enables accurate precision dispensing.
• UV cure provides on-demand assembly and process control.
• Electrical insulation supports electronic applications.
• Hard cured material protects sealed display edges.
• Translucent amber appearance assists visual inspection.

Application and UV-Curing Guidance

Ensure all surfaces are clean, dry, and free from oil, dust, moisture, fingerprints, release agents, and process contamination. Dispense the required amount through light-protected equipment, position the components, and expose the complete seal area to a validated UV source. UV wavelengths between 220 and 260 nm can improve the tack-free cure of surfaces exposed to air, while total cure rate and depth depend on the lamp’s spectral distribution.

Store unopened containers in a dry, light-protected location between 10°C and 27°C. Do not return dispensed material to the original package because contamination can affect performance. Review the latest safety data sheet and validate adhesion, cure depth, electrical properties, and water resistance on representative assemblies.

Official Resources and Related Electronic Adhesives

Review the official Henkel LOCTITE ECCOBOND 3781UV product page and the official LOCTITE ECCOBOND 3781UV technical data sheet for current specifications, curing recommendations, and safety documentation.

Explore our UV-curable electronic adhesives for additional rapid assembly materials, or browse our LCD display adhesives for end sealing, glass bonding, and module assembly. Contact our sales team for quotations, package availability, technical documents, curing-equipment recommendations, and export support.
