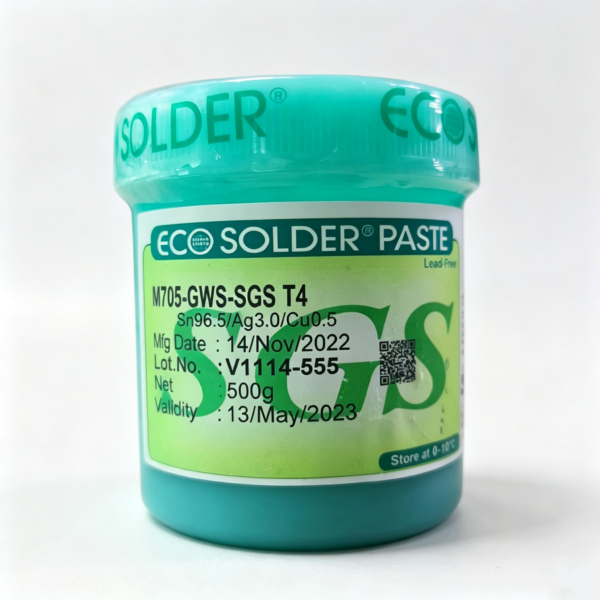

Senju ECOSOLDER M705 Lead-Free Solder Paste for SMT PCB Assembly

Senju ECOSOLDER M705 Lead-Free Solder Paste for SMT Production

M705 is recognized as a general-purpose lead-free alloy with a strong balance of processability and joint reliability. Its established SAC305 composition has been widely adopted for consumer electronics, automotive modules, industrial controllers, communication equipment, appliances, lighting products, power supplies, and other PCB assemblies. The alloy supports standard lead-free reflow processes while delivering dependable mechanical and thermal performance when the paste grade, printing parameters, and thermal profile are correctly selected.

Senju supplies M705 alloy across multiple solder-paste families developed for different production needs. Available options may support fine-pitch printing, low-void assembly, air reflow, nitrogen reflow, dispensing, laser heating, cleaning, no-clean processing, or room-temperature logistics. Because M705 identifies the alloy rather than one single flux formulation, buyers should confirm the complete paste code, flux classification, powder size, package weight, storage condition, and recommended reflow profile before ordering.

Accurate Printing and Consistent Component Assembly

The controlled rheology of a suitable M705 solder-paste grade helps produce repeatable deposits through stencil apertures. Stable print transfer supports consistent solder volume on pads, while adequate tack helps hold components in place before reflow. These characteristics are valuable for high-volume SMT lines, prototype assembly, contract electronics manufacturing, and automated production where print quality directly affects yield.

Senju ECOSOLDER M705 Lead-Free Solder Paste can be selected for common components such as chip resistors, capacitors, IC packages, connectors, QFN devices, and BGA packages, depending on the chosen powder classification and flux series. Production engineers should match stencil thickness, aperture design, squeegee settings, board finish, component termination, and reflow atmosphere to the exact paste specification.

7 Key Benefits for Electronics Manufacturers

• Industry-standard Sn-3.0Ag-0.5Cu lead-free alloy.
• Melting range of approximately 217°C to 220°C.
• Balanced workability and solder-joint reliability.
• Suitable for automated SMT stencil-printing processes.
• Available with multiple Senju flux and application technologies.
• Applicable to consumer, automotive, industrial, and communication electronics.
• Supports precise PCB assembly when used with a validated reflow profile.

Handling, Storage, and Reflow Guidance

Store the unopened container according to the temperature range stated on the exact product label and technical data sheet. Before printing, allow refrigerated paste to reach the recommended working temperature while the container remains sealed to prevent condensation. Mix only as directed, avoid contamination, and do not combine fresh paste with degraded or unidentified material.

Apply the paste using a clean stencil and validated printing parameters. Place components within the recommended tack-life window, then reflow using the thermal profile specified for the selected flux system and assembly. Peak temperature, time above liquidus, ramp rate, soak conditions, and cooling rate must be optimized for the PCB, component thermal mass, surface finish, and process atmosphere.

Excessive heating may damage components or flux residues, while insufficient heating may cause poor wetting, incomplete powder coalescence, or weak solder joints. Always conduct production trials using the actual circuit board, components, stencil design, oven, and selected Senju paste grade.

Official Resources and Related Products

Review the official Senju M705 solder alloy information for alloy composition and product positioning. The official Senju solder paste portfolio provides additional information about M705-compatible paste series for printing, dispensing, laser heating, low-void, cleaning, and no-clean applications.

Explore our lead-free solder pastes for additional SMT assembly materials, or view our PCB assembly consumables for related fluxes, cleaners, solder wire, and production accessories. Contact our sales team with the complete Senju product code, required alloy, flux type, powder size, package weight, annual usage, and destination country to receive an accurate quotation and suitable technical documentation.
