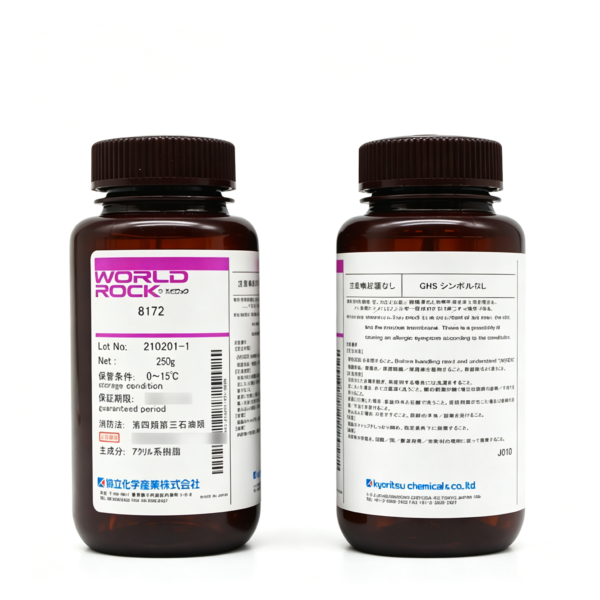

WORLD ROCK 8172 UV Optical Adhesive is a light-curing industrial adhesive developed by Kyoritsu Chemical for fixing lenses and other precision optical components. Its single-component format supports fast, controlled assembly without resin-to-hardener mixing. After the bonded parts are accurately positioned, ultraviolet exposure initiates rapid curing and helps secure the selected alignment. The product is suitable for optical manufacturing processes involving compatible glass, plastics and other precision component materials.

Table of Contents

WORLD ROCK 8172 UV Optical Adhesive Benefits

WORLD ROCK 8172 UV Optical Adhesive helps manufacturers reduce the waiting time associated with conventional room-temperature or heat-curing adhesives. UV curing allows exposed material to develop handling strength quickly, supporting shorter assembly cycles and more efficient production of cameras, sensors, lenses and other optical devices.

The controlled curing process is valuable for applications requiring precise positioning. Operators can dispense the adhesive, adjust the optical component and then expose the joint to a validated UV source after alignment has been confirmed. This process helps reduce unwanted movement between the positioning and curing stages.

Kyoritsu Chemical’s WORLD ROCK 8100 family is designed to protect lenses and optical parts through flexible cured performance. The series is also intended to provide reliable fixing of glass and plastic components, helping the bonded joint tolerate impact and stress more effectively than an excessively rigid material.

WORLD ROCK 8172 UV Optical Adhesive Applications

WORLD ROCK 8172 UV Optical Adhesive is primarily intended for bonding and fixing precision optical parts. Typical potential applications include camera lenses, optical sensor components, mirrors, filters, prisms, light-emitting elements and light-receiving elements.

It can be evaluated for camera modules, digital cameras, optical pickups, automotive imaging systems, security cameras, industrial vision equipment and optical measuring instruments. The product may also support assemblies in which a glass optical component must be attached to a compatible engineering-plastic holder.

Lens materials, optical coatings, molded-plastic grades and surface treatments vary considerably. Manufacturers should therefore test adhesion, curing depth, optical appearance and reliability using the actual production components. Special attention should be given to UV-blocking materials, tinted lenses and structures that create shadowed adhesive areas.

WORLD ROCK 8172 UV Optical Adhesive Processing Advantages

WORLD ROCK 8172 UV Optical Adhesive is supplied as a ready-to-use liquid material, helping simplify preparation and reduce mixing-related variation. The adhesive can be dispensed as a controlled dot or bead with suitable manual, pneumatic or automated equipment.

UV curing offers production flexibility because curing begins when the material receives the appropriate light energy. Before exposure, operators have time to complete component placement and alignment. After exposure, the joint can be fixed rapidly according to the validated wavelength, intensity, distance and curing duration.

The finished assembly should be evaluated for adhesion strength, alignment stability, transparency, yellowing, impact resistance, thermal cycling and humidity resistance. Exact viscosity, curing conditions, mechanical properties and storage requirements should be confirmed from the current manufacturer-issued Technical Data Sheet for the supplied batch.

How to Apply WORLD ROCK 8172 UV Optical Adhesive

Clean each bonding surface carefully and remove oil, dust, fingerprints, moisture and processing residue. Optical components should be handled with clean tools or suitable gloves to avoid contaminating the functional lens area.

Dispense the validated quantity onto the holder or bonding surface. Position the lens, mirror or optical component and complete the required alignment before curing. Avoid excessive adhesive because uncontrolled flow may contaminate optical surfaces or increase curing difficulty.

Expose the adhesive to a qualified UV source using the process parameters specified by Kyoritsu Chemical. Confirm that all critical bonding areas receive sufficient light. Adhesive hidden beneath opaque parts may remain uncured unless the selected grade includes another curing mechanism.

Protect the product from unintended light during storage and dispensing. Keep the container tightly closed and follow the current Safety Data Sheet for ventilation, personal protective equipment, storage and disposal.

Why Choose WORLD ROCK 8172 UV Optical Adhesive?

WORLD ROCK 8172 UV Optical Adhesive provides fast light curing, accurate assembly control and specialized performance for optical-component fixing. It is a practical Japanese adhesive for manufacturers producing lenses, cameras, sensors, mirrors and precision optoelectronic devices.

Review the official Kyoritsu Chemical product information and request the current 8172 TDS and SDS before qualification. Explore our optical adhesives for additional lens, mirror, prism and camera-component bonding solutions.
