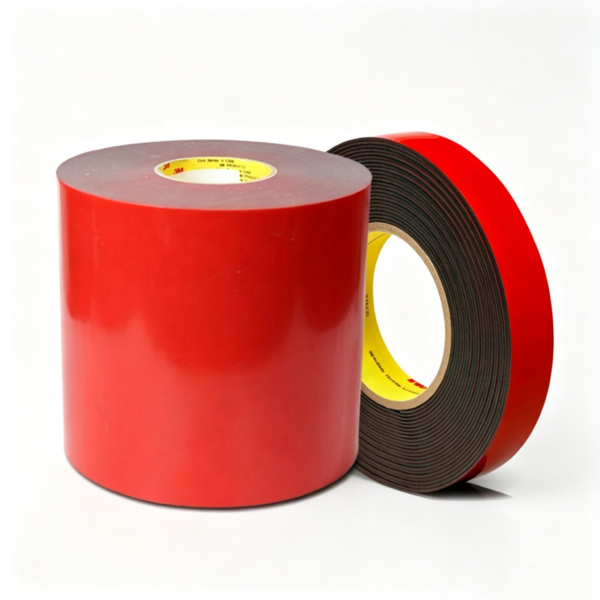

3M GT6012 Acrylic Foam Tape is a 1.2 mm gray, double-sided automotive attachment tape engineered for mounting exterior trim parts with a clean appearance and dependable long-term adhesion. Its high-performance acrylic adhesive is coated on both sides of a viscoelastic acrylic foam core, allowing the tape to conform to curved surfaces, wet out complex geometries, and relax stress caused by dimensional changes. This construction helps manufacturers replace clips, screws, and liquid adhesives in many trim applications while supporting fast and efficient production.

3M GT6012 Acrylic Foam Tape for automotive exterior trim attachment

Table of Contents

Key Benefits of 3M GT6012 Acrylic Foam Tape

3M GT6012 Acrylic Foam Tape provides strong initial adhesion, enabling many bonded parts to move directly to the next assembly stage without temporary fixtures. As the bond develops, the tape delivers high final adhesion and peel strength. The flexible foam core follows shrinkage and elongation of plastic components caused by temperature changes, helping preserve bond-line appearance under normal stress loads.

The tape also offers resistance to weather, common automotive solvents, and demanding temperature conditions. Its pressure-sensitive design eliminates mixing, curing ovens, and liquid adhesive cleanup. A red 3M-branded polyethylene liner supports easy identification and removal, while selected converting formats may use a siliconized paper liner. The product is suitable for both manual application and automated attachment processes.

Automotive Applications for 3M GT6012 Acrylic Foam Tape

This tape is designed primarily for exterior automotive trim attachment. Typical applications include body-side moldings, claddings, pillars, rocker panels, sill plates, spoilers, sensor brackets, emblems, inserts, and wheel-arch extensions. Its 1.2 mm thickness helps accommodate small surface irregularities while maintaining a controlled and professional-looking bond line.

3M GT6012 Acrylic Foam Tape is especially valuable when an assembly combines painted metal with molded plastic trim. The viscoelastic core distributes stress over the bonded area, reducing concentrated forces that may develop as different materials expand and contract. Because paints, plastics, EPDM blends, and surface treatments vary, every application should be validated on the actual production substrates.

3M GT6012 Acrylic Foam Tape Construction and Performance

The tape uses a gray acrylic foam core with a nominal density of approximately 700 kg/m³ and a thickness of 1.2 mm, excluding the liner. The adhesive is self-sticking, so bonding begins when the tape is pressed firmly against a properly prepared surface. Official 3M data shows that peel, shear, and holding performance depend on substrate characteristics, paint composition, surface preparation, pressure, temperature, and dwell time.

For many automotive paint systems, bond strength continues to build after application. The product is designed to perform across a wide temperature range and follow the movement of attached plastic parts during service. Published technical information also identifies strong resistance to temperature, weathering, and common automotive fluids under validated operating conditions.

How to Apply 3M GT6012 Acrylic Foam Tape

Ensure every bonding surface is clean, dry, and free from oil, silicone, dust, release agents, wax, and other contamination. Apply the tape accurately to the trim component without stretching it. Use firm and uniform pressure with a roller, press, or suitable application tool to maximize contact and wet-out across the full bonding area.

Remove the liner without touching the exposed adhesive, position the component carefully, and press it firmly onto the vehicle surface. Application trials should determine the correct pressure, temperature, primer requirement, part fit, and dwell time. Low-surface-energy plastics or rubber blends may require an approved adhesion promoter, such as 3M Adhesion Promoter 4298UV, after compatibility testing.

Why Buy 3M GT6012 Acrylic Foam Tape?

3M GT6012 Acrylic Foam Tape combines fast pressure-sensitive assembly, conformability, stress relaxation, strong adhesion, and exterior durability in a production-ready automotive mounting solution. It is ideal for manufacturers seeking a cleaner alternative to mechanical fasteners or liquid bonding systems while maintaining efficient production and attractive vehicle styling.

Review the official 3M GT6000 Series technical data sheet before qualification. Explore our automotive attachment tapes for additional solutions for moldings, spoilers, emblems, claddings, and exterior trim components.
