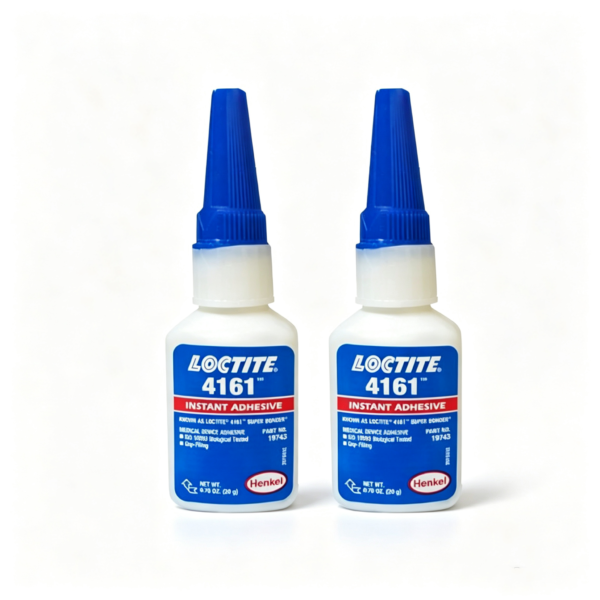

LOCTITE 4161 Medical Grade Instant Adhesive for Plastic, Rubber and Metal Bonding

LOCTITE 4161 Medical Grade Instant Adhesive Benefits

LOCTITE 4161 Medical Grade Instant Adhesive combines rapid processing with a thicker consistency than low-viscosity instant adhesives. Its published viscosity range of approximately 1,150 to 2,000 mPa·s at 25°C helps operators dispense controlled dots or beads while maintaining good wetting across narrow bond lines. The ready-to-use format eliminates proportioning errors and supports manual or automated dispensing.

Fixture speed varies according to substrate, humidity, joint clearance, and temperature. Henkel reports typical fixture times of 20 to 50 seconds on degreased steel, 10 to 30 seconds on aluminum, under five seconds on neoprene and nitrile rubber, and 15 to 40 seconds on ABS. This performance can shorten clamping periods and improve production throughput.

Applications for LOCTITE 4161 Medical Grade Instant Adhesive

The adhesive is suitable for close-fitting plastic, elastomer, and metal parts used in disposable medical devices, tubing connectors, filters, valves, housings, small instruments, and precision industrial assemblies. It can bond ABS, PVC, polycarbonate, phenolic materials, neoprene, nitrile rubber, steel, aluminum, and zinc-dichromate surfaces after suitable preparation and process validation.

Henkel’s ISO 10993 qualification is intended to assist product selection and does not replace testing of the completed medical device. Manufacturers should evaluate the finished assembly, bond geometry, sterilization method, extractables, service environment, and regulatory requirements. Published guidance indicates good strength retention after ethylene oxide and gamma sterilization, as well as one steam-autoclave cycle, but each process must be validated.

LOCTITE 4161 Medical Grade Instant Adhesive Technical Performance

The uncured adhesive is transparent and colorless, with a typical specific gravity of approximately 1.05 at 25°C. It performs best in thin bond gaps near 0.05 mm, while Henkel’s current product information lists gap filling up to 0.25 mm. Larger gaps reduce cure speed and may require an activator, although activation can reduce final bond strength.

After 24 hours at 22°C, published lap-shear strength ranges from 18 to 26 N/mm² on grit-blasted steel, 12 to 19 N/mm² on aluminum, and up to 20 N/mm² on ABS, PVC, and polycarbonate. The cured material also provides electrical insulation, including a typical dielectric breakdown strength of 25 kV/mm and high resistivity.

How to Apply LOCTITE 4161 Medical Grade Instant Adhesive

Clean both bonding surfaces and remove oil, grease, dust, moisture, mold-release agents, and processing residue. Apply a small amount to one surface, align the components accurately, and assemble them immediately. Hold or clamp the joint until fixture strength develops. Thin, uniform bond lines normally provide the fastest cure and strongest results.

When curing is too slow because of low humidity or larger gaps, evaluate a compatible LOCTITE activator through production testing. Avoid excessive adhesive because thick layers may cure more slowly and create visible blooming. Full chemical and solvent resistance develops after curing continues for at least 24 hours.

Why Buy LOCTITE 4161 Medical Grade Instant Adhesive?

LOCTITE 4161 Medical Grade Instant Adhesive offers fast fixture development, high-viscosity control, clear appearance, strong multi-material adhesion, electrical insulation, and ISO 10993-related qualification in one production-ready formula. It is a practical choice for medical-device manufacturers and precision assemblers requiring dependable bonding of plastics, rubber, and metals. Review the official LOCTITE 4161 Technical Data Sheet before qualification, and explore our medical instant adhesives for additional rapid-curing assembly solutions.
