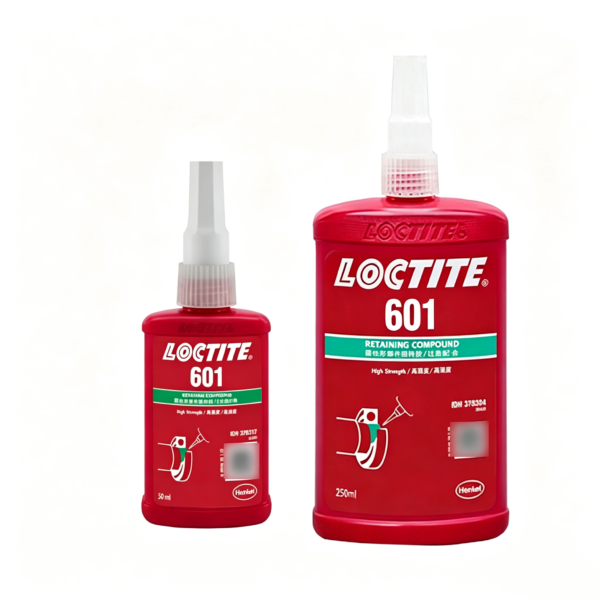

LOCTITE 601 High Strength Retaining Compound for Permanent Cylindrical Bonding

LOCTITE 601 High Strength Retaining Compound is a one-component, low-viscosity anaerobic adhesive developed for permanent bonding of close-fitting cylindrical metal parts. The green liquid flows easily into narrow interfaces between shafts, hubs, collars, bushings, sleeves, and similar assemblies. After the components are fitted together and air is excluded from the joint, the adhesive cures into a strong material that helps prevent loosening, leakage, fretting, and movement caused by shock or vibration.

Designed for industrial manufacturing, electric motor assembly, machinery maintenance, and precision mechanical repair, LOCTITE 601 High Strength Retaining Compound provides a practical alternative to relying only on interference fits, keys, pins, or other mechanical retention methods. Its low viscosity supports even distribution across the cylindrical interface, while the one-part formula eliminates resin and hardener mixing. The product is intended for applications where a durable, high-strength bond is required.

Key Benefits of LOCTITE 601 High Strength Retaining Compound

LOCTITE 601 High Strength Retaining Compound combines high retaining strength with controlled flow into small clearances. Henkel specifies a Brookfield viscosity of approximately 100 to 150 mPa·s at 25°C and a maximum recommended diametrical clearance of 0.1 mm. On steel, the typical fixture time is approximately 25 minutes, allowing parts to achieve initial handling strength without an extended production delay.

The cured adhesive is suitable for operating temperatures from approximately -55°C to 150°C. Its published compressive shear strength on steel pins and collars is at least 15 N/mm² under the stated test conditions. The formulation also fluoresces under ultraviolet light, enabling manufacturers to check adhesive presence during dispensing inspection and production quality control.

Applications for LOCTITE 601 High Strength Retaining Compound

LOCTITE 601 High Strength Retaining Compound is suitable for accurately fitted cylindrical metal components used in motors, pumps, gearboxes, industrial equipment, tools, and rotating machinery. Typical parts may include shafts, collars, sleeves, bushings, hubs, bearings, and other components requiring permanent retention. It is especially useful where a low-viscosity product is needed to reach narrow bond gaps and create continuous contact throughout the fitted joint.

Performance depends on the substrate, clearance, surface condition, temperature, and curing environment. Active metals such as steel generally cure faster than passive or plated surfaces. When cure speed is too slow, the metal is inactive, or the clearance is larger, a compatible LOCTITE activator such as SF 7471 or SF 7649 may be used according to current manufacturer instructions. Representative testing should be completed before mass production or critical equipment use.

How to Apply LOCTITE 601 High Strength Retaining Compound

Clean the internal and external surfaces thoroughly and allow them to dry. Apply LOCTITE 601 High Strength Retaining Compound around the shaft and inside the mating bore, ensuring sufficient product covers the complete cylindrical interface. Assemble the parts promptly, using a slight rotating motion where practical to distribute the adhesive evenly and reduce trapped air.

Keep the components correctly positioned and do not disturb the assembly until adequate handling strength has developed. Cure speed varies with the metal, bond gap, ambient temperature, and activator use. Allow sufficient curing before applying operational loads, vibration, chemicals, or elevated temperature. Because the product creates a permanent, high-strength joint, disassembly may require localized heating and suitable mechanical tools.

Storage and Safety of LOCTITE 601 High Strength Retaining Compound

Store LOCTITE 601 High Strength Retaining Compound in its unopened original container in a dry location. Henkel identifies 8°C to 21°C as the optimal storage range and advises that temperatures below 8°C or above 28°C may affect product properties. Do not return dispensed material to the original container because contamination can reduce storage stability or curing consistency.

Use the product in a ventilated workplace, avoid skin and eye contact, and review the latest safety data sheet before handling. For manufacturers seeking reliable permanent retention of small-gap cylindrical metal parts, LOCTITE 601 High Strength Retaining Compound offers low-viscosity application, high final strength, and dependable resistance to shock and vibration.
