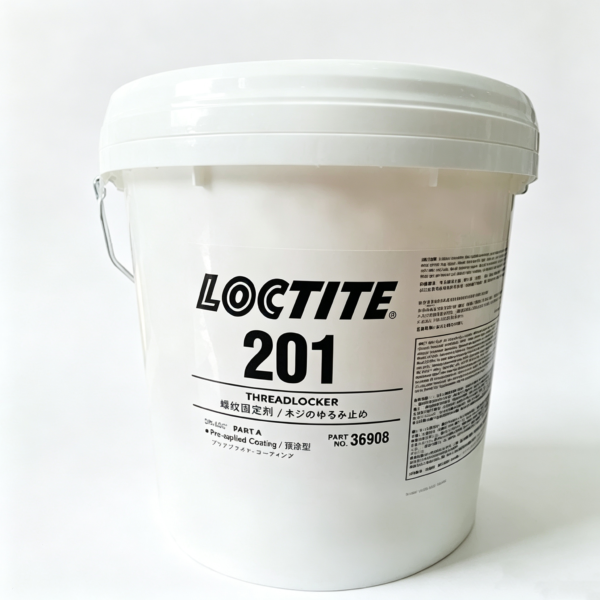

LOCTITE DRI 201 ECO Threadlocker is a high-strength, pre-applied threadlocking film developed for metal screws, bolts, nuts, plugs, and threaded fittings used in high-volume industrial production. Unlike conventional liquid threadlockers applied during assembly, this two-component material is coated onto the threaded part in advance and dries to a clean, non-tacky film. The prepared fastener can then be stored, transported, automatically fed, and installed whenever required, helping manufacturers simplify assembly and maintain consistent threadlocker placement.

Table of Contents

LOCTITE DRI 201 ECO Threadlocker for High-Volume Assembly

LOCTITE DRI 201 ECO Threadlocker remains inactive while the coated fastener is stored. During installation, the mechanical action of engaging the threads crushes microcapsules within the coating and releases the active ingredient. The material then begins curing between the closely fitted metal surfaces, forming a strong bond that helps prevent loosening caused by vibration, shock, and repeated mechanical loading.

The dry-to-touch format is particularly beneficial for automated production lines. Operators do not need to dispense liquid adhesive onto every fastener, and manufacturers can avoid problems caused by excessive application, missed threads, dripping, or contamination of nearby components. The coating is placed in the required location and quantity before the fastener reaches the final assembly station.

Key Benefits of LOCTITE DRI 201 ECO Threadlocker

LOCTITE DRI 201 ECO Threadlocker provides high locking strength for threaded assemblies that are expected to remain secure throughout their service life. After complete curing, the coating also provides thread-sealing performance, helping reduce leakage paths through the engaged threads.

High-strength locking for demanding threaded assemblies
Pre-applied dry film supplied directly on the fastener
Dry-to-touch surface for clean storage and automatic handling
Activated during assembly when internal microcapsules are crushed
Helps prevent loosening caused by vibration and mechanical shock
Provides both threadlocking and thread-sealing performance
Rated within Henkel’s pre-applied threadlocker range up to 150°C

The pre-applied system also improves process repeatability. Each coated fastener arrives ready for immediate installation, allowing manufacturers to reduce assembly steps and maintain more uniform application quality across large production quantities. Bright, visible thread coatings can also support inspection and identification during component handling.

Applications of LOCTITE DRI 201 ECO Threadlocker

LOCTITE DRI 201 ECO Threadlocker is suitable for automotive, transportation, machinery, appliance, construction-equipment, and general industrial fasteners. Typical applications include carburetor screws, transmission nuts, cylinder-head bolts, truck axle bolts, tower bolts, transmission bolts, pipe plugs, and compatible threaded fittings.

It is especially useful when a liquid threadlocker cannot be conveniently applied at the assembly station. Fasteners can be processed in advance by an approved coating facility and delivered to the production line as ready-to-install locking components. This approach supports automatic feeding equipment, robotic assembly, contract manufacturing, and operations where cleanliness and production speed are important.

How LOCTITE DRI 201 ECO Threadlocker Is Used

LOCTITE DRI 201 ECO Threadlocker is normally applied to fasteners before they reach the end user. The coating must cover the required thread area with a controlled and validated application thickness. After drying, the coated parts should be protected against damage, contamination, and inappropriate storage conditions.

During assembly, install the coated fastener using the specified tightening procedure and torque. Thread engagement activates the coating, after which the material cures between the metal surfaces. Joint design, thread finish, plating, fastener size, engagement length, assembly torque, temperature, and contamination can influence final performance.

Because this is a high-strength grade, disassembly may require increased torque or localized heating. Removed fasteners should be inspected before reuse. Henkel advises cleaning the threads and applying an appropriate liquid LOCTITE threadlocker or thread sealant when a previously coated fastener is reassembled.

Why Choose LOCTITE DRI 201 ECO Threadlocker?

LOCTITE DRI 201 ECO Threadlocker converts an ordinary fastener into a ready-to-use locking and sealing component. It provides manufacturers with a cleaner alternative to point-of-assembly liquid dispensing while supporting high strength, vibration resistance, consistent coating placement, and efficient automated production.
