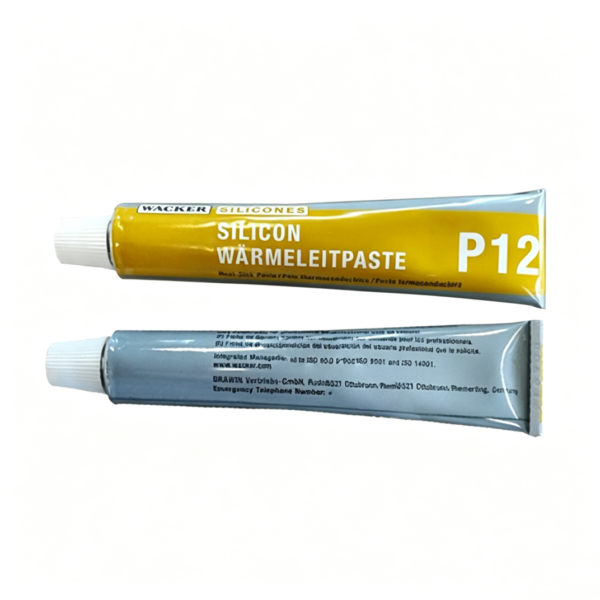

WACKER P12 Silicone Thermal Compound is a white, silicone-based heat-transfer paste designed to improve thermal contact between electronic components and heat-dissipation surfaces. Its soft, non-curing consistency fills microscopic air gaps between power modules, semiconductors, processors, metal housings, and heat sinks, creating a more efficient path for heat transfer. With reliable electrical insulation and long-term serviceability, it is a practical thermal-management material for industrial electronics, power conversion equipment, automotive systems, maintenance operations, and precision electrical assemblies.

Table of Contents

WACKER P12 Silicone Thermal Compound for Efficient Heat Transfer

Even carefully machined metal surfaces contain small irregularities that prevent complete surface-to-surface contact. Air trapped inside these gaps acts as a thermal barrier and can increase the operating temperature of sensitive components. WACKER P12 spreads across the interface and displaces much of this trapped air, helping transfer heat from the component base to the cooling plate or heat sink more effectively.

The product offers a typical thermal conductivity of approximately 0.81 W/m·K and a density of around 2.25 g/cm³ at 20°C. Its paste-like consistency supports thin, controlled application by screen printing, roller coating, automated dispensing, or careful manual spreading. It does not require mixing, curing, or heating before assembly, allowing manufacturers and technicians to complete installation without waiting for a chemical reaction.

WACKER P12 Silicone Thermal Compound Performance Benefits

WACKER P12 Silicone Thermal Compound is commonly used between semiconductor modules and heat sinks, including IGBT modules, rectifiers, power supplies, converters, motor drives, and industrial control equipment. It is also suitable for selected processors, amplifiers, automotive electronic modules, electrical cabinets, and other assemblies that depend on efficient thermal coupling.

The non-curing formulation remains soft after installation, which supports future component removal, inspection, or replacement. Unlike a thermally conductive adhesive, the paste does not provide structural bonding, so the component must be secured using screws, clips, clamps, or another suitable mechanical fastening system. Proper mounting pressure helps spread the compound evenly and maintain a thin, consistent thermal interface.

The product is electrically insulating, making it useful where heat must be transferred without intentionally creating an electrically conductive path between the component and heat sink. Published product information identifies an operating-temperature capability extending up to approximately 200°C, with the exact lower-temperature rating depending on the applicable product documentation and supply version.

WACKER P12 has also been used as a pre-applied thermal interface material on industrial power modules. Automated honeycomb printing can help manufacturers maintain controlled coverage and consistent paste thickness while improving production repeatability. Actual thermal performance depends on the component design, surface flatness, mounting pressure, paste thickness, operating temperature, and heat-sink efficiency.

How to Apply WACKER P12 Silicone Thermal Compound

Clean both mating surfaces before application. Remove dust, oil, oxidation, fingerprints, old thermal grease, and other contamination that could interfere with heat transfer. Apply a thin and uniform layer to the component base or heat-sink surface. The objective is to fill surface imperfections rather than create a thick insulating layer, so unnecessary excess material should be avoided.

Position the component carefully and tighten the mechanical fasteners according to the equipment manufacturer’s recommended sequence and torque. Even pressure helps distribute the paste across the interface and reduces the risk of trapped air pockets. Remove excess compound from surrounding areas without contaminating connectors, terminals, optical surfaces, or exposed contacts.

For repeat manufacturing, screen-printing or controlled dispensing methods can improve consistency and reduce material waste. Production users should validate the selected application thickness with the actual power module, heat sink, mounting hardware, and operating conditions. Thermal testing under full load is recommended before approving the final assembly process.

WACKER P12 Silicone Thermal Compound is an effective purchasing choice for electronics manufacturers, power-module suppliers, maintenance teams, and thermal-management specialists. Its combination of dependable heat transfer, electrical insulation, non-curing serviceability, broad temperature capability, and flexible application methods makes it suitable for demanding industrial cooling and electronic heat-dissipation systems.
