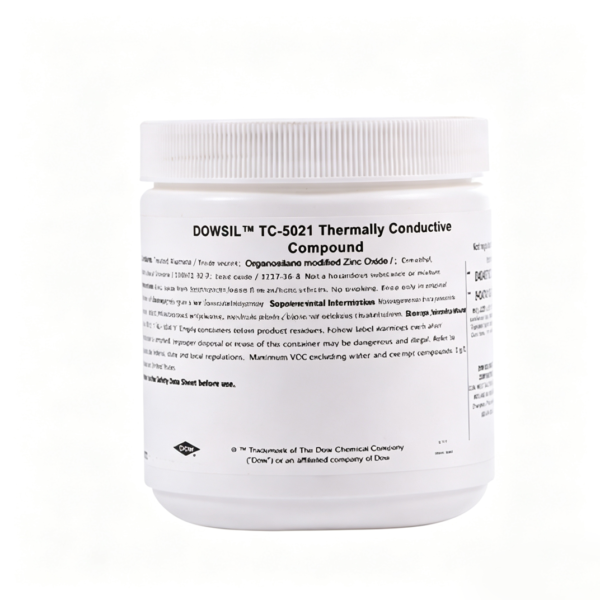

DOWSIL TC-5021 Thermally Conductive Compound is a one-part, gray, non-curing silicone thermal interface material designed to transfer heat efficiently from high-performance electronic components to heat sinks and cooling hardware. Developed for microprocessor units in servers, desktop computers, and notebook systems, it fills microscopic surface irregularities that can trap insulating air between mating surfaces. By creating a stable thermal bridge, the compound helps lower interface resistance, support reliable temperature control, and protect sensitive electronics during continuous operation.

Table of Contents

DOWSIL TC-5021 Thermally Conductive Compound for Processor Cooling

Modern processors generate concentrated heat that must be removed quickly to maintain stable performance. Even carefully machined processors and heat sinks contain small surface imperfections that reduce direct contact. This thermally conductive compound spreads across those irregularities and improves the effective contact area between the heat source and the cooling assembly.

Because the material does not require curing, production teams can assemble components without waiting for an oven cycle or room-temperature chemical reaction. The non-curing format also supports future disassembly and rework when processors, cooling modules, or heat sinks need to be inspected, replaced, or serviced. Mechanical clamping or the original equipment fastening system should be used to maintain consistent pressure and preserve the required bond-line thickness.

DOWSIL TC-5021 Thermally Conductive Compound Performance Benefits

DOWSIL TC-5021 Thermally Conductive Compound offers a typical thermal conductivity of 3.3 W/m·K, providing an efficient heat-transfer path for medium- to high-performance computing applications. Dow lists the product as a gray, one-part thermal compound with a typical viscosity of approximately 82,650 mPa·s and a density of approximately 3.47 g/cm³. Its controlled consistency supports accurate application while helping the material remain within the interface during assembly.

The product is suitable for server processors, desktop CPUs, notebook processors, chipsets, graphics-related components, and other electronic devices that require dependable thermal coupling to a metal heat spreader or heat sink. Its electrical insulation properties also make it useful where designers need thermal transfer without creating an intentionally conductive electrical path. Typical published electrical properties include dielectric strength of approximately 5.0 kV/mm and volume resistivity of approximately 3.7 × 10¹¹ Ω·cm.

Excellent printability makes the material practical for controlled manufacturing processes. Depending on the assembly design and production equipment, it may be applied through screen printing, stencil printing, automated dispensing, or carefully controlled manual application. A repeatable deposit helps manufacturers manage material use, maintain a consistent interface, and reduce excess squeeze-out around sensitive components.

How to Apply DOWSIL TC-5021 Thermally Conductive Compound

Before application, make sure both mating surfaces are clean, dry, and free from dust, oil, old thermal compound, release agents, oxidation, and loose contamination. Apply a thin, uniform amount to the processor, heat spreader, or heat-sink contact area. Avoid using an unnecessarily thick layer because excessive material can increase the distance between the surfaces and reduce overall thermal efficiency.

Position the cooling component carefully and tighten the mechanical fasteners according to the equipment manufacturer’s specified sequence and torque. Controlled pressure helps spread the compound evenly and establish the intended bond line. Remove excess material from surrounding areas without contaminating connectors, contacts, optical components, or nearby circuitry.

Thermal performance depends on surface flatness, applied quantity, assembly pressure, bond-line thickness, operating temperature, and equipment design. Production users should validate the complete thermal system under actual service conditions before approving large-scale use. Storage, handling, and workplace safety should follow the latest Dow technical and safety documentation.

DOWSIL TC-5021 Thermally Conductive Compound is a dependable purchasing choice for electronics manufacturers, computer repair centers, data-center equipment suppliers, and thermal-management specialists. Its combination of non-curing serviceability, reliable printability, electrical insulation, and 3.3 W/m·K thermal conductivity makes it well suited to processor cooling and precision electronic heat-transfer applications.
