LOCTITE 598 RTV Silicone Gasket Maker for Oil Pans and Automotive Engines
LOCTITE 598 RTV Silicone Gasket Maker for Oil-Resistant Sealing

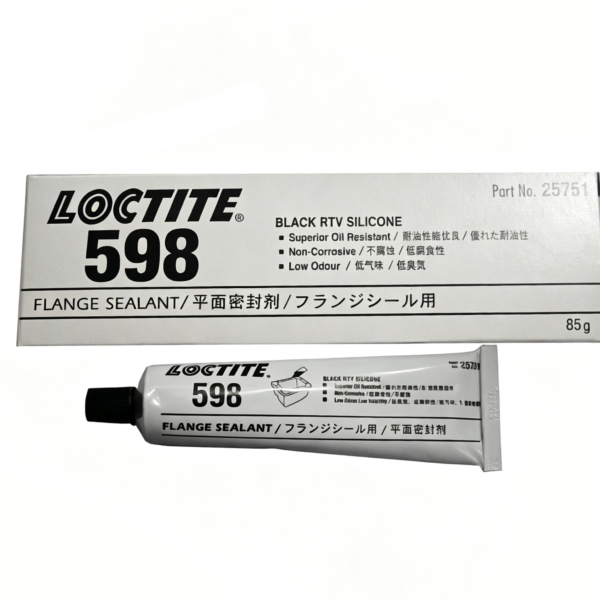

LOCTITE 598 RTV Silicone Gasket Maker is a metallic-black, one-component oxime silicone sealant designed for forming flexible gaskets on automotive and industrial assemblies. Officially marketed as LOCTITE SI 598, the thixotropic paste cures at room temperature when exposed to atmospheric moisture, creating a tough silicone-rubber seal. Its non-sag consistency supports controlled application on horizontal and vertical flange surfaces while limiting movement after dispensing.
The product is particularly suitable for assemblies exposed to engine oil, vibration, weathering, and repeated thermal cycling. Unlike rigid pre-cut gaskets, the liquid-applied material follows the exact flange profile and fills minor surface irregularities before curing. The resulting elastic gasket resists hardening, shrinking, and cracking, helping maintain sealing performance as components expand, contract, and move during operation.
Key Benefits of LOCTITE 598 RTV Silicone Gasket Maker
LOCTITE 598 RTV Silicone Gasket Maker provides excellent resistance to automotive motor oils and retains useful properties when exposed to transmission fluids, alcohol, antifreeze solutions, and other compatible automotive fluids. Its typical operating-temperature range extends from approximately -54°C to 260°C, supporting use in engine compartments, transmissions, gear systems, and other high-temperature mechanical equipment. The product is not recommended for components that remain in direct contact with gasoline.
Typical uncured properties include a specific gravity between 1.27 and 1.32 at 25°C. Under Henkel’s published curing conditions of 25°C and approximately 50% relative humidity, the tack-free time is no more than 25 minutes. Full performance develops over approximately 72 hours, although the actual cure rate depends on humidity, temperature, bead thickness, joint depth, and exposure to air.
After seven days of curing, the silicone provides a typical tensile strength of at least 1.3 N/mm², elongation of at least 325%, and Shore A hardness between 26 and 40. This combination of strength and flexibility allows the gasket to absorb shock, vibration, and joint movement while maintaining contact with compatible flange surfaces. The cured material is suitable for gasket replacement or for dressing an existing conventional gasket when approved by the equipment manufacturer.
Applications for LOCTITE 598 RTV Silicone Gasket Maker
LOCTITE 598 RTV Silicone Gasket Maker is designed for oil pans, transmission pans, valve covers, valves and guides, timing-gear covers, differential covers, and similar automotive or industrial housings. It can be used on compatible metal flange assemblies that require a flexible, oil-resistant, formed-in-place gasket. Henkel positions the product for automotive aftermarket work and industrial manufacturing applications.
The product should not be used as a cylinder-head gasket or head-gasket sealant. It is also unsuitable for pure oxygen, oxygen-rich systems, chlorine, or other strong oxidizing materials. Before production or repair use, test the sealant on the actual substrate, flange design, operating fluid, temperature range, pressure, and expected service conditions.
How to Apply LOCTITE 598 RTV Silicone Gasket Maker
Before applying LOCTITE 598 RTV Silicone Gasket Maker, remove old gasket material, oil, grease, dirt, moisture, and loose contamination from both flange surfaces. Apply a continuous bead to one prepared surface, surrounding bolt holes and following the required sealing path. Assemble the parts within a few minutes because moisture curing begins immediately after the material is exposed to air.
Tighten the fasteners according to the equipment manufacturer’s recommended sequence and torque. Wipe away uncured excess using a suitable non-polar solvent after confirming surface compatibility. Allow sufficient curing before exposing the assembly to full operating pressure, oil, elevated temperature, or mechanical loading. Automated production can use an appropriate volumetric dispensing system for consistent bead placement.
Storage and Safety of LOCTITE 598 RTV Silicone Gasket Maker
Store LOCTITE 598 RTV Silicone Gasket Maker in its unopened original container in a dry location. Henkel identifies 8°C to 21°C as the optimal storage range and warns that temperatures below 8°C or above 28°C may affect product properties. Do not return dispensed material to the original container, and review the current safety data sheet before handling.
For automotive technicians, manufacturers, and maintenance professionals, LOCTITE 598 RTV Silicone Gasket Maker provides convenient one-part application, excellent motor-oil resistance, high-temperature durability, and flexible sealing for oil pans, transmission housings, valve covers, and differential covers. Explore our automotive RTV gasket makers for additional engine, transmission, differential, and industrial flange-sealing solutions.
