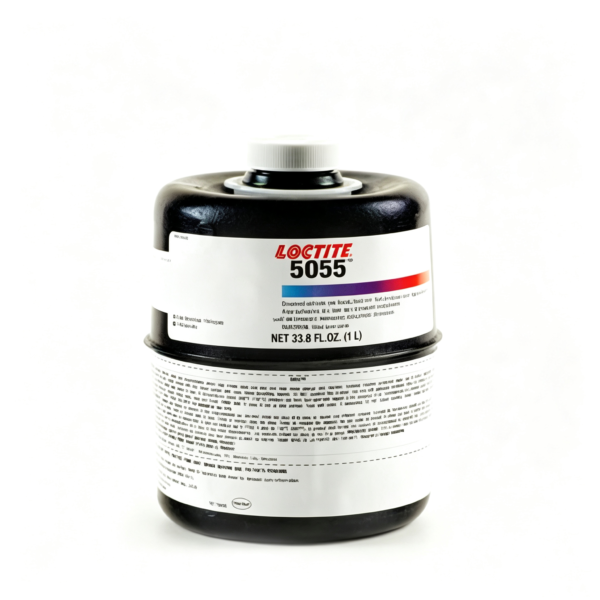

LOCTITE SI 5055 Silicone Adhesive for Disposable Medical Device Assembly

LOCTITE SI 5055 Silicone Adhesive for Medical Device Assembly

LOCTITE SI 5055 Silicone Adhesive is a one-component, low-viscosity light-curing material engineered for bonding, potting, coating, and sealing in disposable medical device assembly. The light-yellow transparent liquid cures under ultraviolet or visible light to form a tough, transparent silicone rubber. Because no mixing is required, the product supports simplified dispensing and consistent processing in manual or automated production environments.

The material is useful where manufacturers need a flexible bond that protects delicate components without creating a rigid stress point. Once cured, the silicone rubber can accommodate movement, vibration, and differences in thermal expansion between joined substrates. Its transparent appearance also helps preserve the visual quality of medical housings, tubing connections, diagnostic components, sensors, and assemblies where the bond line should remain discreet.

Key Benefits of LOCTITE SI 5055 Silicone Adhesive

LOCTITE SI 5055 Silicone Adhesive combines rapid light curing with practical handling properties. Henkel lists a typical uncured viscosity range of 200 to 850 mPa·s at 25°C and a specific gravity of approximately 0.98. The liquid can flow into controlled gaps, coat surfaces, and surround small parts during potting. Under suitable 365 nm light exposure at 70 mW/cm², a tack-free surface may be achieved in 30 seconds, depending on the light source and process conditions.

A 60-second exposure under specified conditions can produce a cure depth of at least 4 mm. Functional strength develops almost immediately after the correct light dose is delivered, while full performance properties continue developing for up to 72 hours. This rapid process can shorten cycle times when light intensity, exposure distance, and material depth are properly controlled.

Applications for LOCTITE SI 5055 Silicone Adhesive

LOCTITE SI 5055 Silicone Adhesive is designed primarily for disposable medical devices and has been tested under Henkel protocols based on ISO 10993 biocompatibility standards. Typical applications include bonding transparent housings, sealing connectors, potting sensors, coating electronic sections, fixing tubing components, and protecting assemblies requiring a flexible silicone interface. Henkel data includes adhesion results on glass, aluminum, steel, UV-transmitting polycarbonate, PVC, PBT, ABS, and nylon.

Published testing also shows bond-strength retention after one gamma, ethylene oxide, or autoclave sterilization cycle on UV-transmitting polycarbonate. These results support early product selection but do not replace validation of the completed device. Manufacturers should test the actual substrates, joint design, light transmission, sterilization method, cleaning process, operating environment, and applicable regulatory requirements.

How to Apply LOCTITE SI 5055 Silicone Adhesive

For best performance, ensure that bonding surfaces are clean, dry, and free from grease, dust, moisture, mold-release agents, and contamination. Dispense LOCTITE SI 5055 Silicone Adhesive in the required bead, coating, or cavity, then expose it to sufficient UV or visible light. Henkel recommends a minimum irradiance of approximately 70 mW/cm² for about 60 seconds as an initial processing reference. Deeper sections, shadowed areas, complex geometries, or light-absorbing substrates may require additional exposure.

Keep parts positioned during curing and verify the delivered light dose through process monitoring. Excess uncured material may be removed with a suitable non-polar solvent, following the solvent supplier’s safety instructions. Production teams should establish validated limits for bead size, cure depth, exposure time, irradiance, lamp condition, and inspection.

Storage and Safety of LOCTITE SI 5055 Silicone Adhesive

Store LOCTITE SI 5055 Silicone Adhesive in its unopened original container in a dry location. Henkel identifies 8°C to 21°C as the optimal storage range and notes that temperatures below 8°C or above 28°C may affect product properties. Use ventilation and protective equipment, avoid skin and eye contact, and review the latest safety data sheet. Do not use the product in pure oxygen, oxygen-rich systems, or with chlorine and other strong oxidizing materials.

For manufacturers seeking a transparent, fast-curing silicone for disposable medical devices, LOCTITE SI 5055 Silicone Adhesive offers no-mix processing, low viscosity, flexible protection, and efficient light curing. Explore our medical device adhesives for additional solutions for bonding, sealing, coating, potting, and precision healthcare manufacturing.
